Engine Oil Gallery Cap Replacement

  1. Remove the engine oil gallery cap (A).

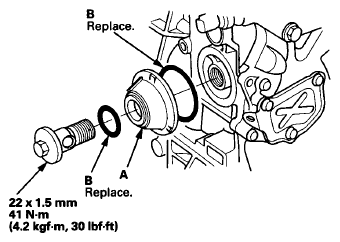

    Fig 1: Engine Oil Gallery Cap And O-rings With Torque Specification
    G06609511Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Clean the O-ring groove and mating surface with the engine oil gallery cap.
  3. Install the engine oil gallery cap with new O-rings (B).
