Wheel Speed Sensor Replacement: Front

  1. Turn the ignition switch to LOCK (0),
  2. Remove the front wheel.
  3. Release the connector holding clamps (A), then disconnect the wheel speed sensor connector (B).

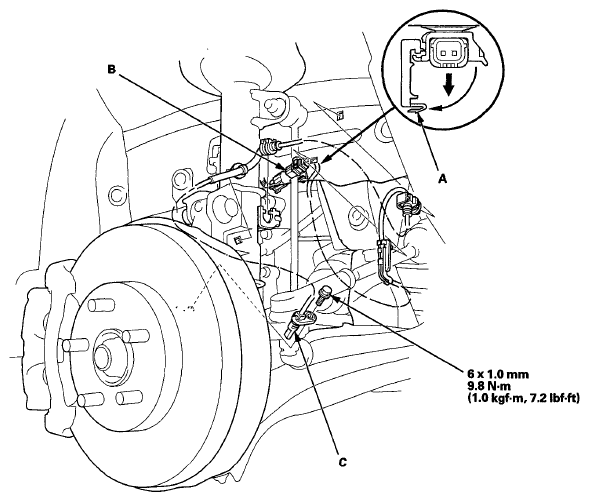

    Fig 1: Locating Connector Holding Clamps And Wheel Speed Sensor Connector - Front With Torque Specifications
    G06611309Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the clips, the bolt, and the wheel speed sensor (C).
  5. Install the wheel speed sensor in the reverse order of removal, and note these items:
    • Install the wheel speed sensor carefully to avoid twisting the wires.
    • If the wheel speed sensor comes in contact with the wheel bearing, it is faulty. Investigate the cause before replacing the wheel speed sensor.
  6. Start the engine, and test-drive the vehicle. Make sure that the ABS and VSA indicators turn off during the test drive and do not come back on.
