VSA Off Switch Test

Turn the ignition switch to LOCK (0).
Remove the power mirror switch (A) (see POWER MIRROR SWITCH TEST/REPLACEMENT ), then disconnect the VSA OFF switch 5P connector (B).

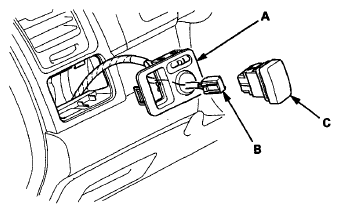

Fig 1: Locating Power Mirror Switch And VSA OFF Switch 5P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Push out the VSA OFF switch (C) from the back of the switch panel.
Check for continuity between the VSA OFF switch 5P connector terminal in each button position according to the table.

Fig 2: Checking Continuity Between VSA OFF Switch 5P Connector Terminal In Each Button Position
Courtesy of AMERICAN HONDA MOTOR CO., INC.

'07-09 models

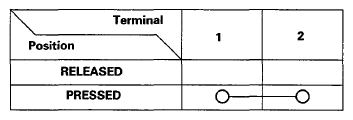

Fig 3: Terminals Continuity Reference Chart - '07-09 Models
Courtesy of AMERICAN HONDA MOTOR CO., INC.

'10 model

Fig 4: Terminals Continuity Reference Chart - '10 Models
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the VSA OFF switch 5P connector terminals No. 4 and No. 5. There should be continuity at all times.

Fig 5: Checking Continuity Between VSA OFF Switch 5P Connector Terminals No. 4 And No. 5
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the VSA OFF switch in the reverse order of removal.
