VSA Modulator-control Unit Inputs and Outputs for 46P Connector

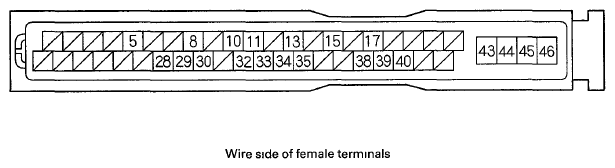

Fig 1: Identifying VSA Modulator-control Unit Inputs And Outputs For 46P Connector

Courtesy of AMERICAN HONDA MOTOR CO., INC.

TERMINALS REFERENCE CHART

Terminal number	Wire color	Terminal name	Description	Signal
5	PUR	ST-B	Detects steering angle sensor signal	-
8	BLU	RR-GND	Detects right-rear wheel speed sensor signal
10	PUR	RL-GND	Detects left-rear wheel speed sensor signal
11	YEL	RL+B	Detects left-rear wheel speed sensor signal
13	RED	FL-GND	Detects left-front wheel speed sensor signal
15	LTBLU	K-LINE	Communication with HDS
17	BLU	ST-Z	Detects steering angle sensor signal
28	PNK	FR-GND	Detects right-front wheel speed sensor signal
29	GRN	FR+B	Detects right-front wheel speed sensor signal
30	LTGRN	RR+B	Detects right-rear wheel speed sensor signal
32	RED	ST-A	Detects steering angle sensor signal
33	GRY	SVCC	Power source for the steering angle sensor	With ignition switch ON (II): about 5.0 V
34	BLU	FL+B	Detects left-front wheel speed sensor signal	-
35	BRN	S-GND	Ground for the steering angle sensor
38	RED	CANL	F-CAN communication circuit
39	WHT	CANH	F-CAN communication circuit
40	YEL	IG1	Power source for activating the system	With ignition switch ON (II): battery voltage
43	BLK	GND	Ground for the VSA modulator-control unit	Continuity
44	WHT	+ BSOL	Power source for the valve relay	Battery voltage at all time
45	RED	+ BMOT	Power source for the motor relay	Battery voltage at all time
46	BLK	MR-GND	Ground for the pump motor	Continuity
