Under-cowl Panel Replacement

NOTE: Take care not to scratch the body.

Remove these items:
- Windshield wiper arms (see WIPER MOTOR REPLACEMENT )
- Front fender trim, both sides (see FRONT FENDER TRIM REPLACEMENT )
- Cowl covers (see COWL COVER REPLACEMENT )
Remove the bolts and the nuts, disconnect the connector (A) and remove the grommet (B), then remove the under-cowl panel (C).

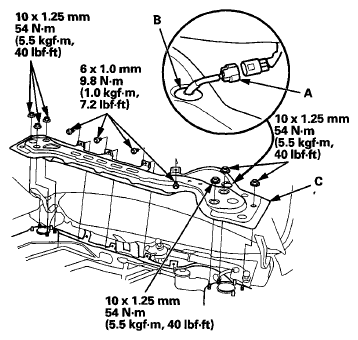

Fig 1: Locating Bolts, Nuts, Connector, Grommet And Under-Cowl Panel With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the under-cowl panel in the reverse order of removal.
