Front Console Cover Removal/Installation

NOTE: Take care not to scratch the dashboard or related parts.

Remove the console cover (A).
1. Remove the clips (B, C).
2. Gently pull out the cover to detach the clips (D).
3. Driver's side: Pull the cover away to release the pin (E) from the holder (F).
  Passenger's side: Pull the cover to release the hook (G).
Driver's side

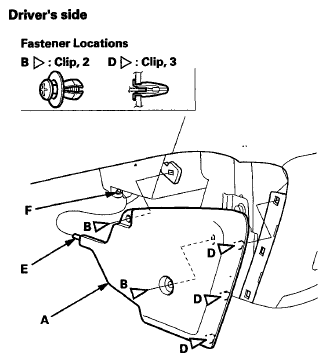

Fig 1: Identifying Console Cover, Clips, Pin And Holder - Driver'S Side

Passenger's side

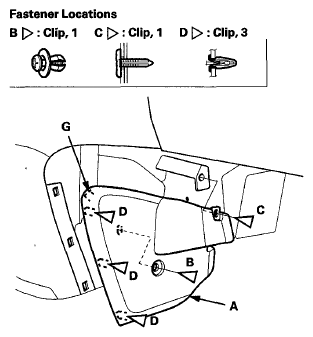

Fig 2: Identifying Console Cover, Clips, Pin And Holder - Passenger'S Side
Install the cover in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the hook into place securely.
