Gauge Control Module (Compass) Connector End View

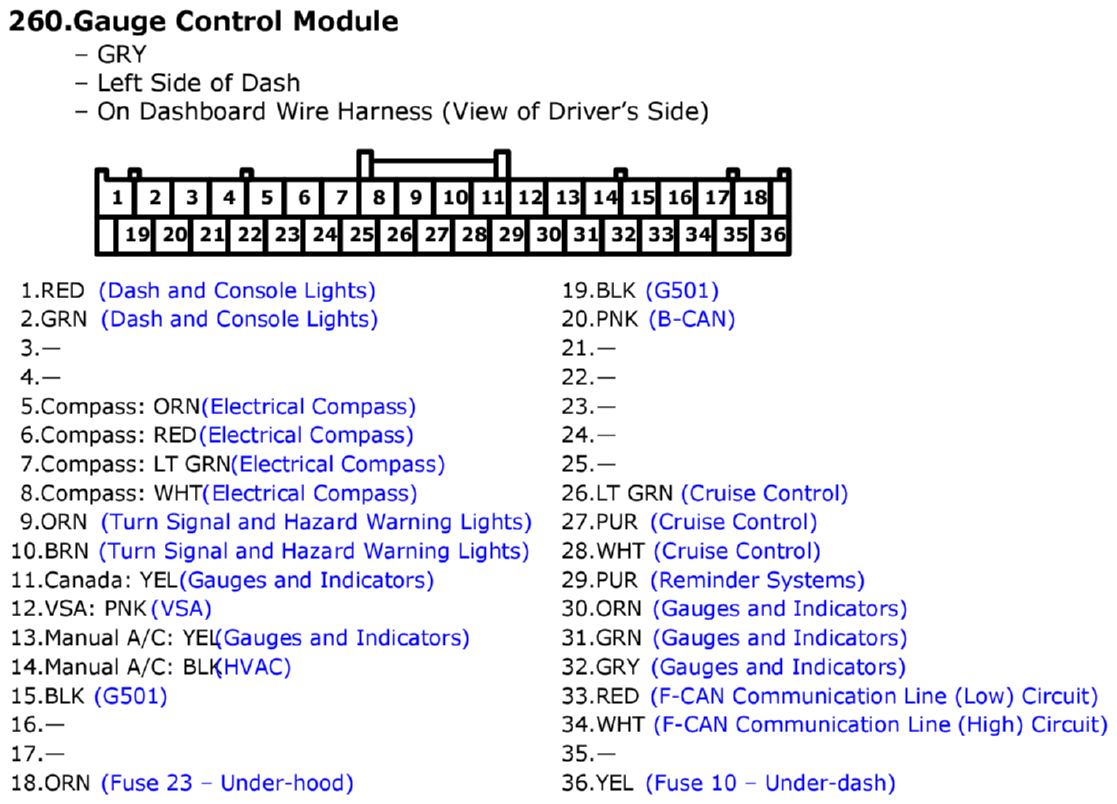

Fig 1: Gauge Control Module (Compass) Connector End View

GHHW3394

Courtesy of AMERICAN HONDA MOTOR CO., INC.
