Recirculation Control Motor Connector End View

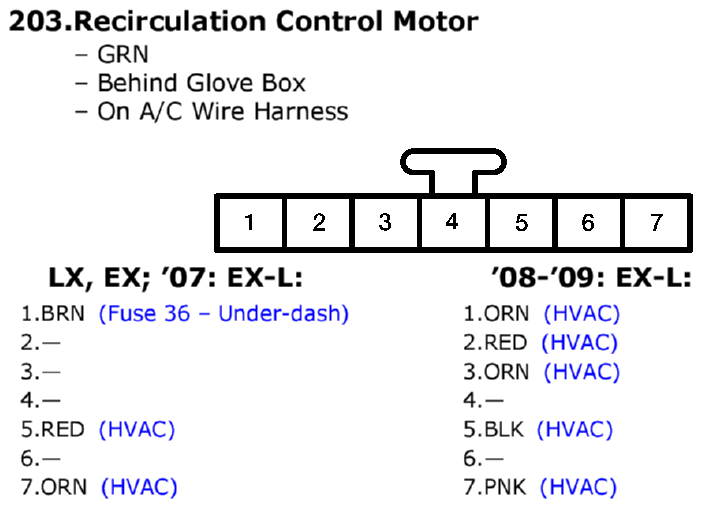

Fig 1: Recirculation Control Motor Connector End View
GHHW3064Courtesy of AMERICAN HONDA MOTOR CO., INC.

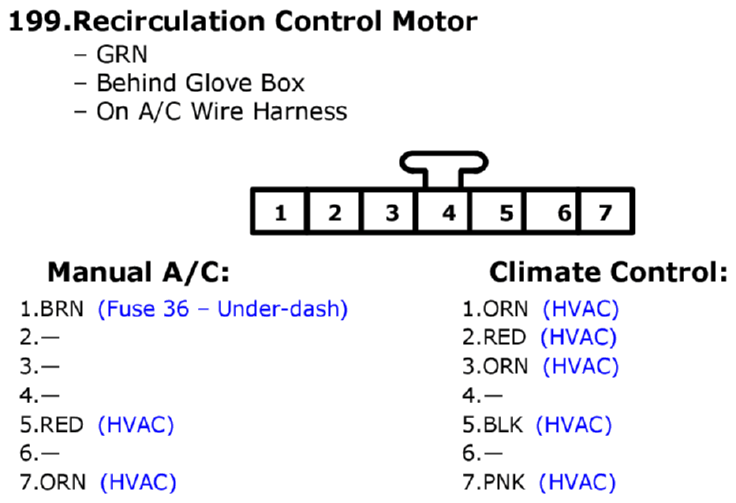

Fig 1: Recirculation Control Motor Connector End View
GHHW3336Courtesy of AMERICAN HONDA MOTOR CO., INC.
