Console Accessory Power Socket Test/Replacement

NOTE: If all of the front, console, and cargo area accessory power sockets do not work, check the No. 34 (7.5 A) fuse in the under-dash fuse/relay box and poor ground (G502).

For EX-L: Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
For EX: Remove the center table AUX cover (A) from the table.

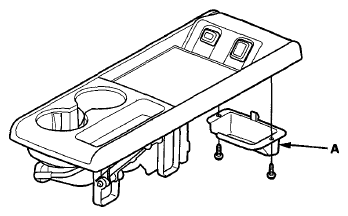

Fig 1: Center Locating Table Aux Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the 2P connector (A) from the console accessory power socket (B).
EX-L

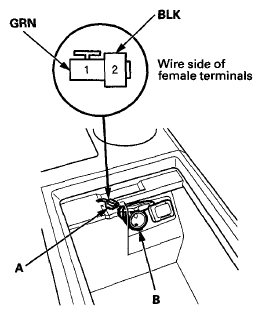

Fig 2: Locating 2P Connector And Console Accessory Power Socket - EX-L
Courtesy of AMERICAN HONDA MOTOR CO., INC.

EX

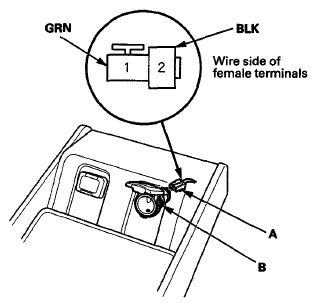

Fig 3: Locating 2P Connector And Console Accessory Power Socket - EX
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Inspect the connector terminals to be sure they are all making good contact.
- If the terminals are bent, loose, or corroded, repair them as necessary and recheck the system.
- If the terminals look OK, go to step 4.
Turn the ignition switch to ACC (I).
Measure the voltage between terminal No. 1 and body ground. There should be battery voltage.
- If there is battery voltage, go to step 6.
- If there is no battery voltage, check for:
  - Blown No. 31 (15 A) fuse in the under-dash fuse/relay box.
  - Faulty console accessory power socket relay.
  - Poor ground (G502) or an open in the ground wire.
  - An open or high resistance in the wire.
Measure the voltage between terminal No. 2 and body ground. There should be battery voltage.
- If there is battery voltage, go to step 7.
- If there is no battery voltage, check for:
  - Poor ground (G551) or an open in the ground wire.
  - An open or high resistance in the wire.
Remove the socket (A).
EX-L

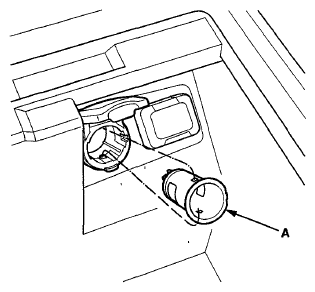

Fig 4: Locating Console Accessory Power Socket - EX-L
Courtesy of AMERICAN HONDA MOTOR CO., INC.

EX

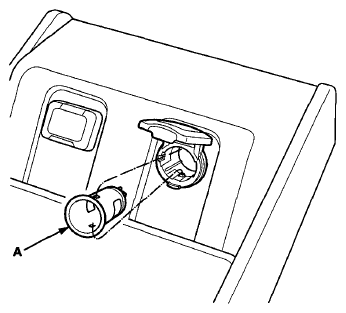

Fig 5: Locating Console Accessory Power Socket - EX
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the housing (A).
EX-L

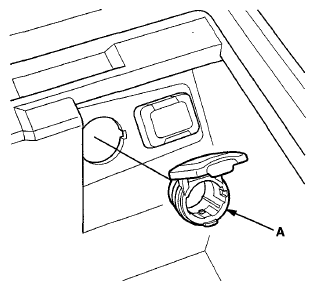

Fig 6: Locating Housing - EX-L
Courtesy of AMERICAN HONDA MOTOR CO., INC.

EX

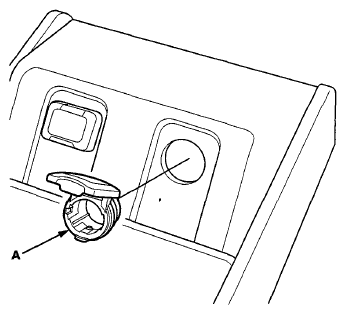

Fig 7: Locating Housing - EX
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the power socket in the reverse order of removal.
