CR-V EX, 2.4 RE3
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Audio System
>>
Self-diagnostic Function
>>
Display Specifications
Display Specifications

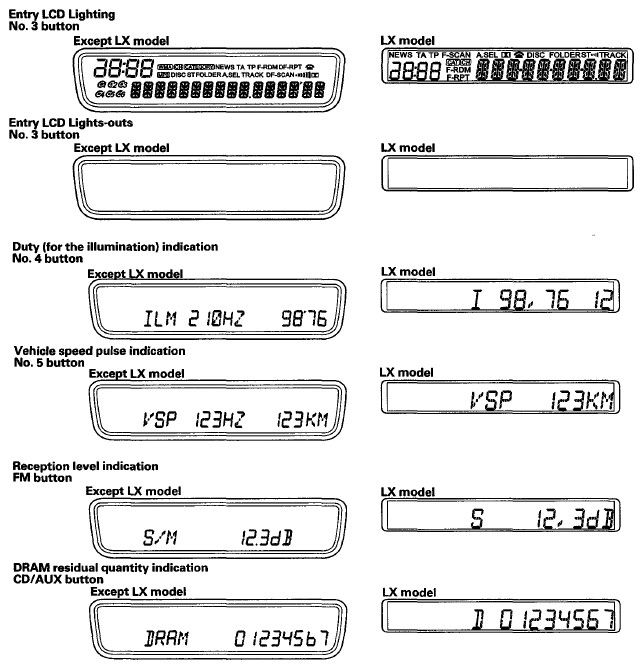

Fig 1: Audio System Display Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

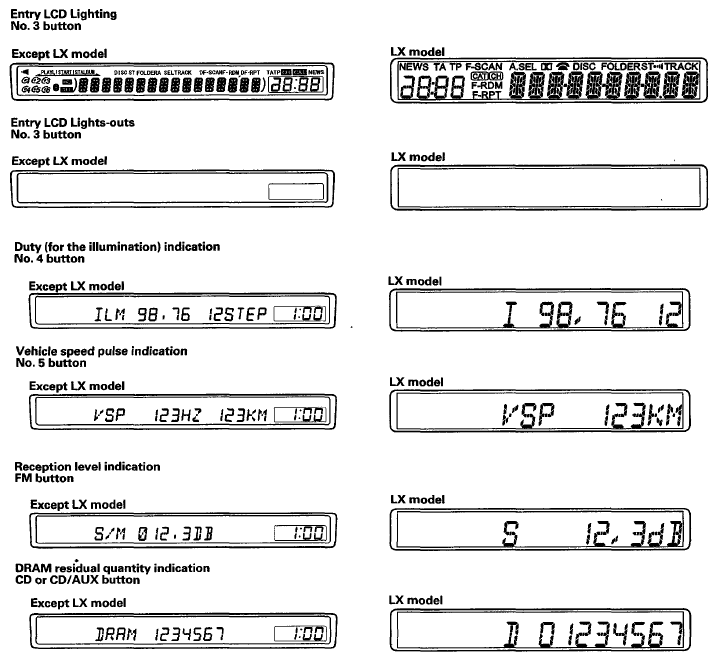

Fig 1: Audio System Display Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
