Cruise Control Combination Switch Test/Replacement

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX )and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

1. Remove the steering wheel (see STEERING WHEEL REMOVAL ).

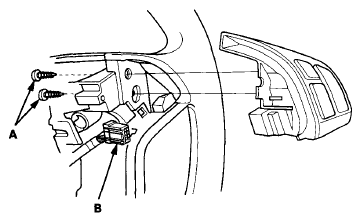

2. Remove the screws (A). Disconnect the 12P connector (B), then remove the cruise control combination switch.
   Fig 1: Identifying 12P Connector And Screws


3. Check for continuity between the terminals in each switch position according to the table.
   • If there is continuity, and it matches the table, but switch failure occurred on the cruise control input test, check and repair the wire harness on the switch circuit.
   • If there is no continuity in one or more positions, replace the switch.

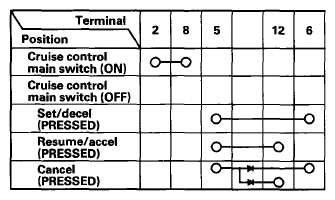

   Fig 2: Terminal Position Chart

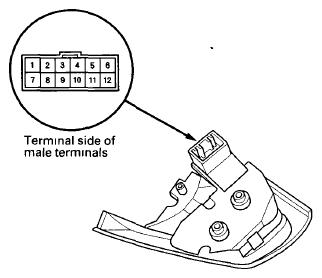

   Fig 3: Identifying Terminal Side Of Male Terminals


4. Check for continuity between the terminals in according to the table.
   • If there is continuity, and it matches the table, check and repair the wire harness on the switch circuit.
   • If there is no continuity in one or more positions, replace the switch.
   Fig 4: Terminal Continuity Chart
