Component Location Index

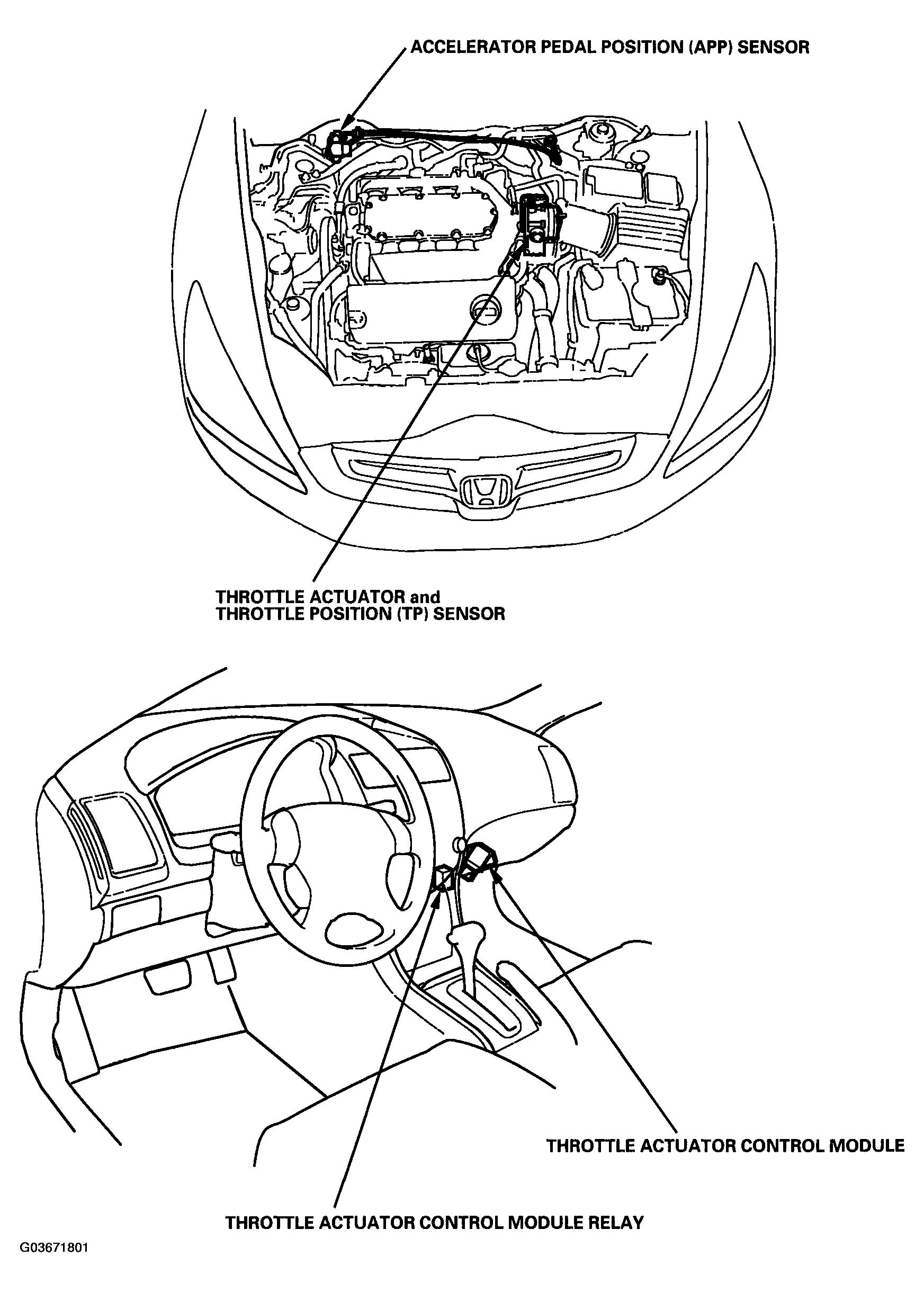

Fig 1: Identifying Electronic Throttle Control System Components

G03671801

Courtesy of AMERICAN HONDA MOTOR CO., INC.
