Frame Hoist

  1. Position the hoist lift blocks (A), under the vehicle's front support points (B) and rear support points (C).

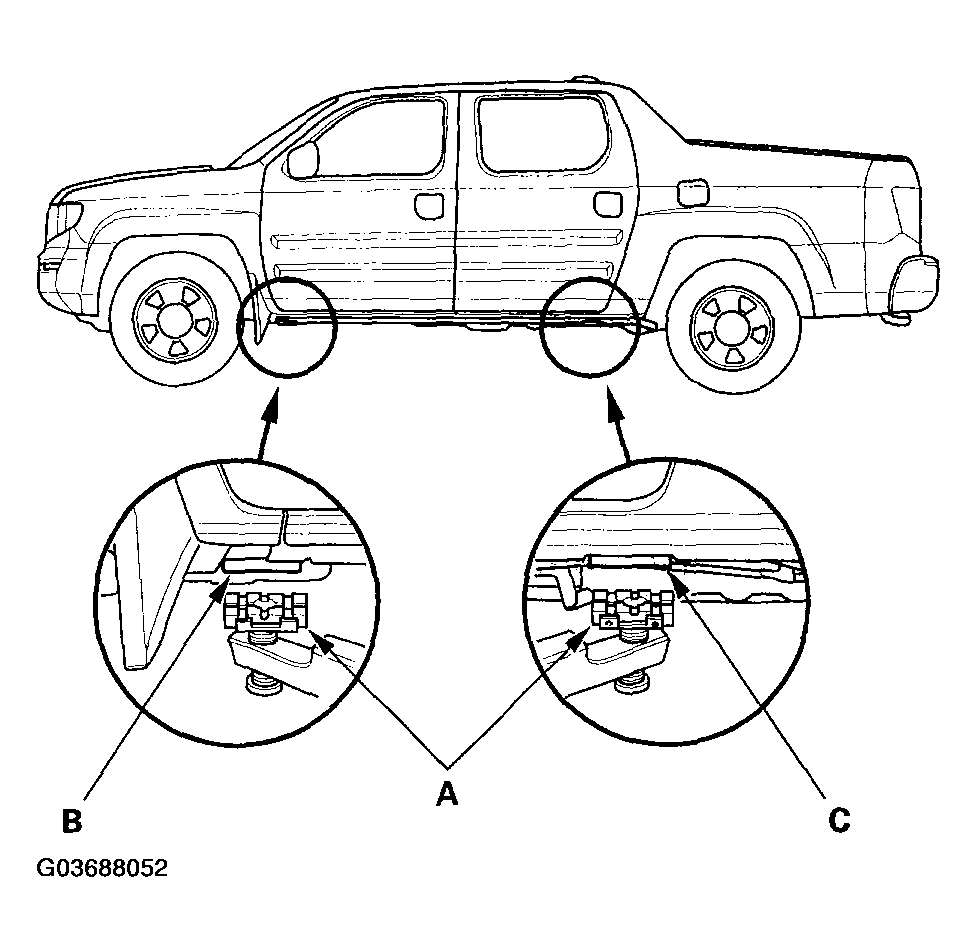

    Fig 1: Positioning Hoist Lift Blocks Under Vehicle's Front And Rear Support Points
    G03688052Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Raise the hoist a few inches, and rock the vehicle gently to be sure it is firmly supported.
  3. Raise the hoist to full height, and inspect the lift points for solid contact with the lift blocks.
