Hood Release Handle Replacement

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left kick panel (see TRIM REMOVAL/INSTALLATION - DOOR AREAS ).
  2. Detach the side wire harness connector (A) and remove the bolts, then remove the hood release handle (B).

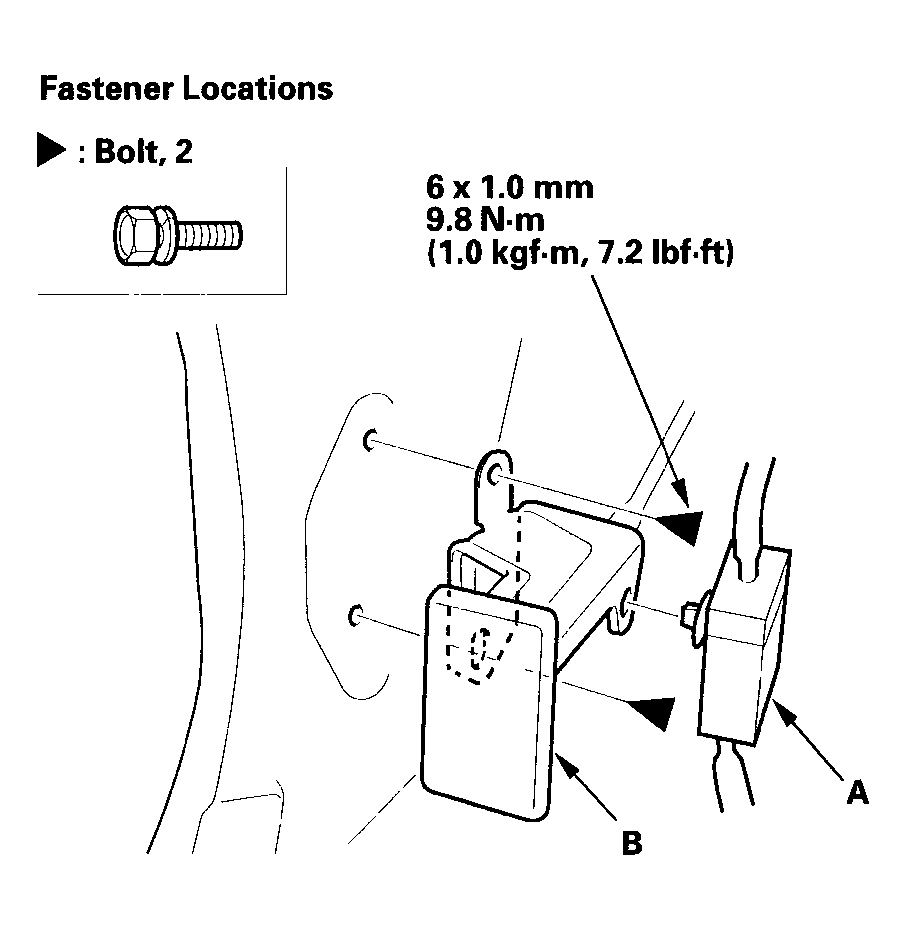

    Fig 1: Removing Hood Release Handle
    G04248417Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the hood opener cable (A) from the hood release handle (B). Take care not to bend the cable.

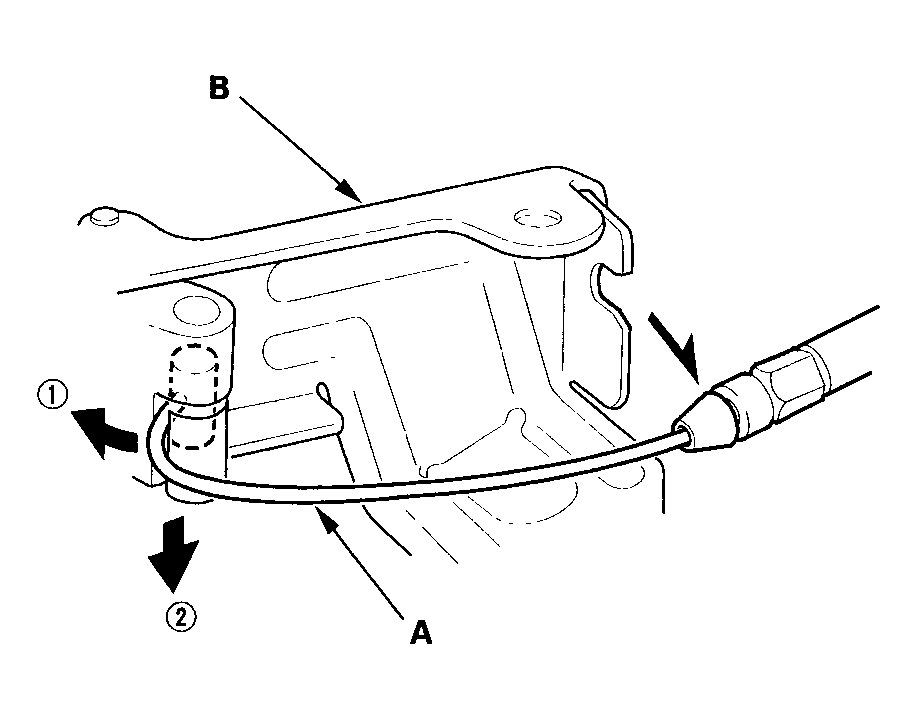

    Fig 2: Disconnecting Hood Opener Cable From Hood Release Handle
    G04248418Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the hood release handle in the reverse order of removal, and note these items:
    • Make sure the hood opener cable is connected properly.
    • Make sure the hood opens properly.
