Wiper Motor Test: Windshield

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cowl cover (see WIPER MOTOR REPLACEMENT  ).
  2. Disconnect the wiper motor connector (A) from the wiper motor (B).

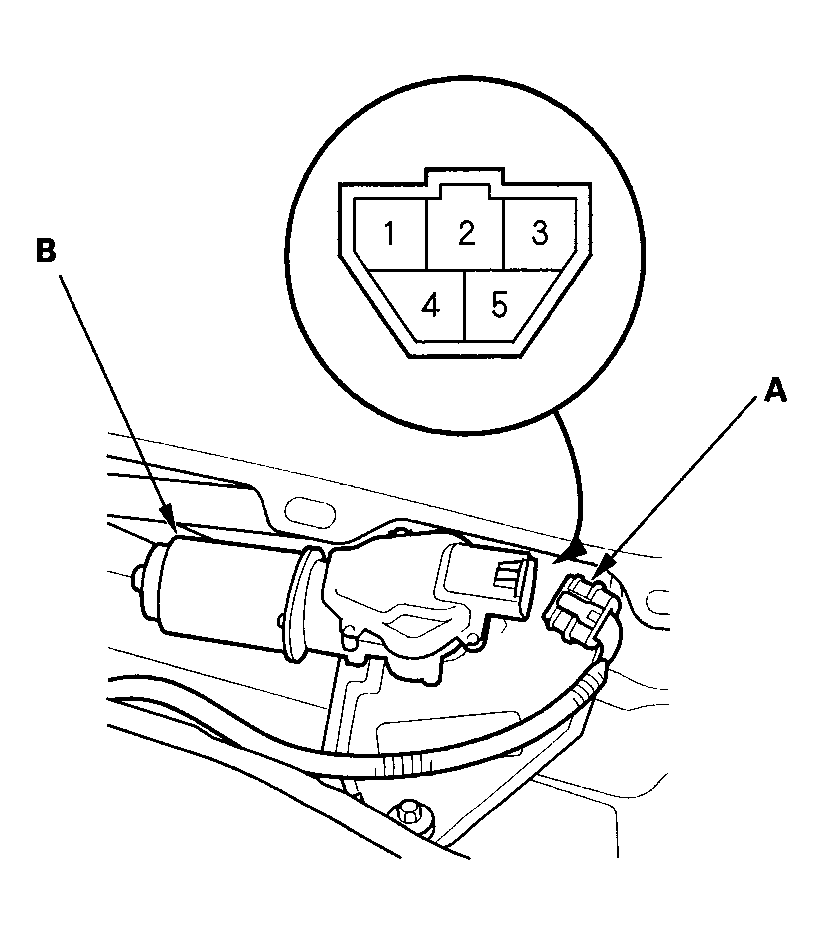

    Fig 1: Disconnecting Wiper Motor Connector From Wiper Motor
    G04247276Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Test the motor by connecting battery power and ground according to Fig 2 .

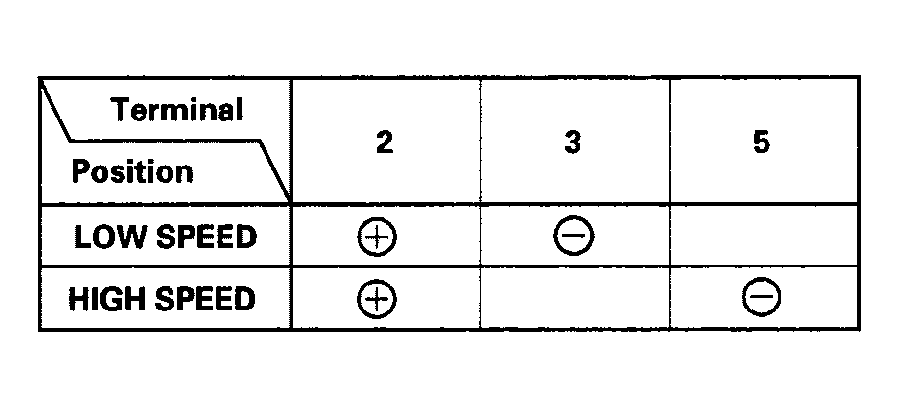

    Fig 2: Connecting Battery Power & Ground Table
    G04247277Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Connect an analog voltmeter between the No. 4 (+) and No. 1 (-) terminals, and run the motor at low or high speed. The voltmeter should indicate 0 V and 4 V or more alternately.
  5. If the voltmeter does not indicate as specified, replace the wiper motor.
