Rear Window

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cover (A), mounting nut (B) and rear window wiper arm (C).

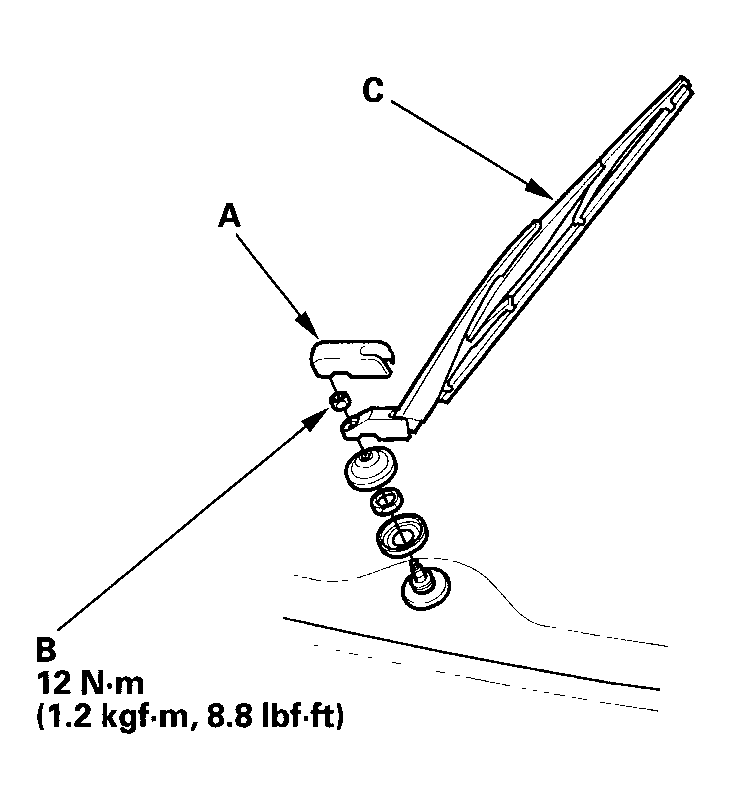

    Fig 1: Removing Cover, Mounting Nut And Rear Window Wiper Arm With Torque Specifications
    G04247285Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Open the tailgate and remove the tailgate lower trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
  3. Disconnect the 4P connector (A) from the rear window wiper motor (B).

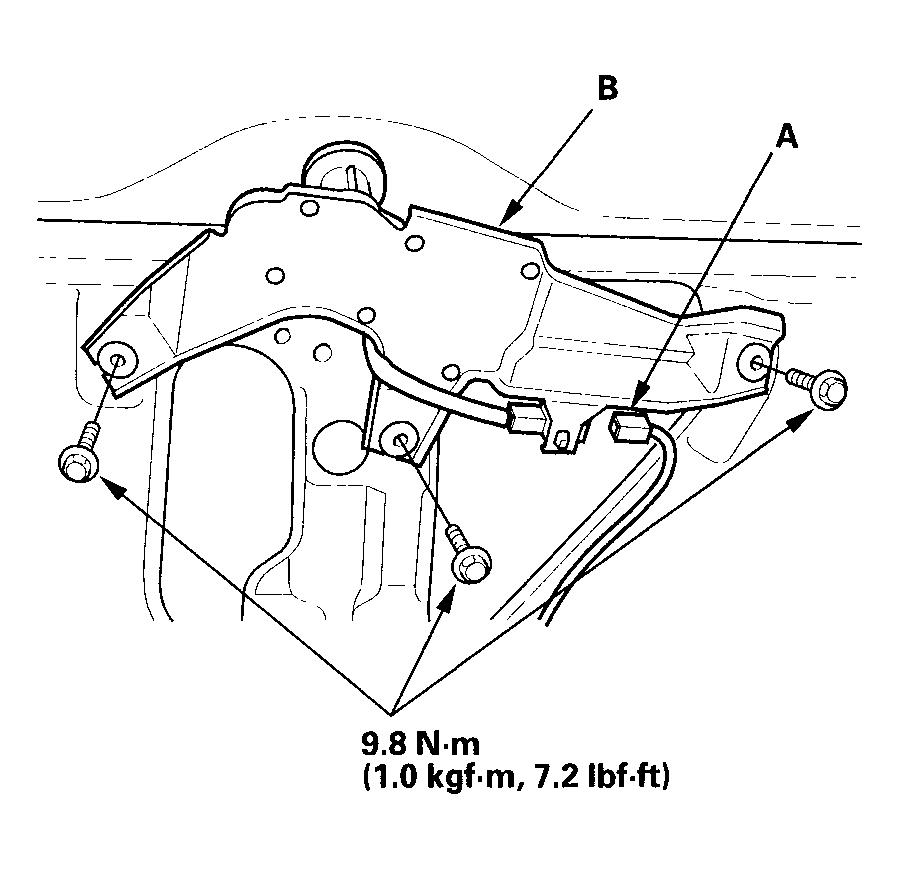

    Fig 2: Disconnecting 4P Connector From Rear Window Wiper Motor With Torque Specifications
    G04247286Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the mounting bolts and the wiper motor.
  5. Install in the reverse order of removal.
