Splash Shield Replacement

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Take care not to scratch the body.

Remove the splash shield (A).
- 1 From under the front suspension subframe, remove the clips (B) and bolts (C).
- 2 From both wheel arch, remove the clips (B) securing the front inner fender (E) and splash shield (on the body).
- 3 From under the front bumper (F), remove the clips (B, D).
- 4 Pull the splash shield out.

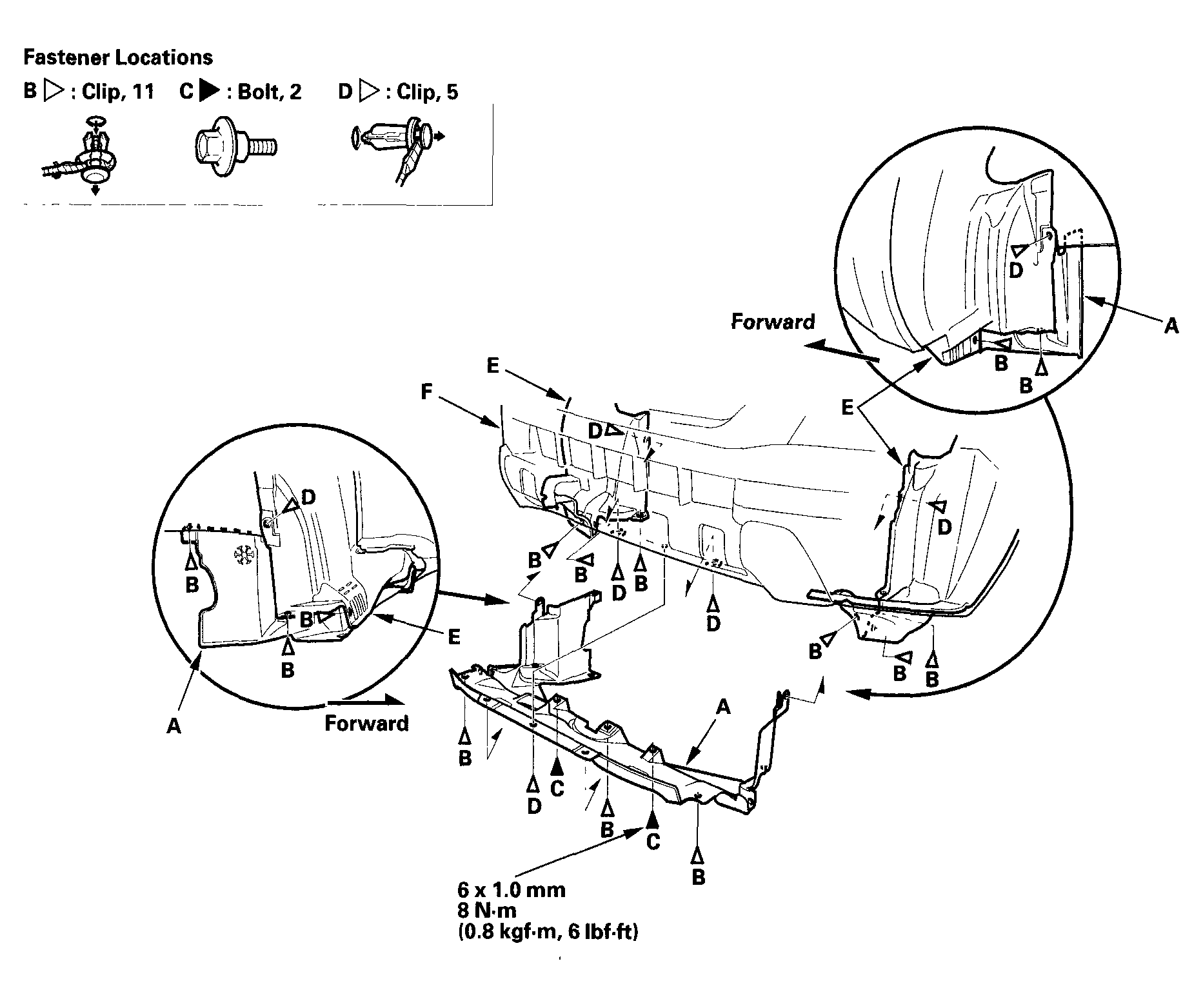

  Fig 1: Removing Splash Shield
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the splash shield in the reverse order of removal, and note these items:
- Check for damaged or stress-whitened clips, and replace them with a new one.
- Push the clips into place securely.
