Instrument Panel Removal/Installation

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

KTC trim tool set SOJATP2014 *

* Available through the American Honda Tool and Equipment Program; call 888-424-6857

NOTE:

Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
Take care not to scratch the dashboard and related parts.

Tilt the steering column down.
Remove the instrument panel (A).
- - Remove the screws (B).
- - Gently pull out the panel to release the clips (C) and hooks (D).
- - Release the bottom portion (E) of the panel from the steering column upper cover (F).

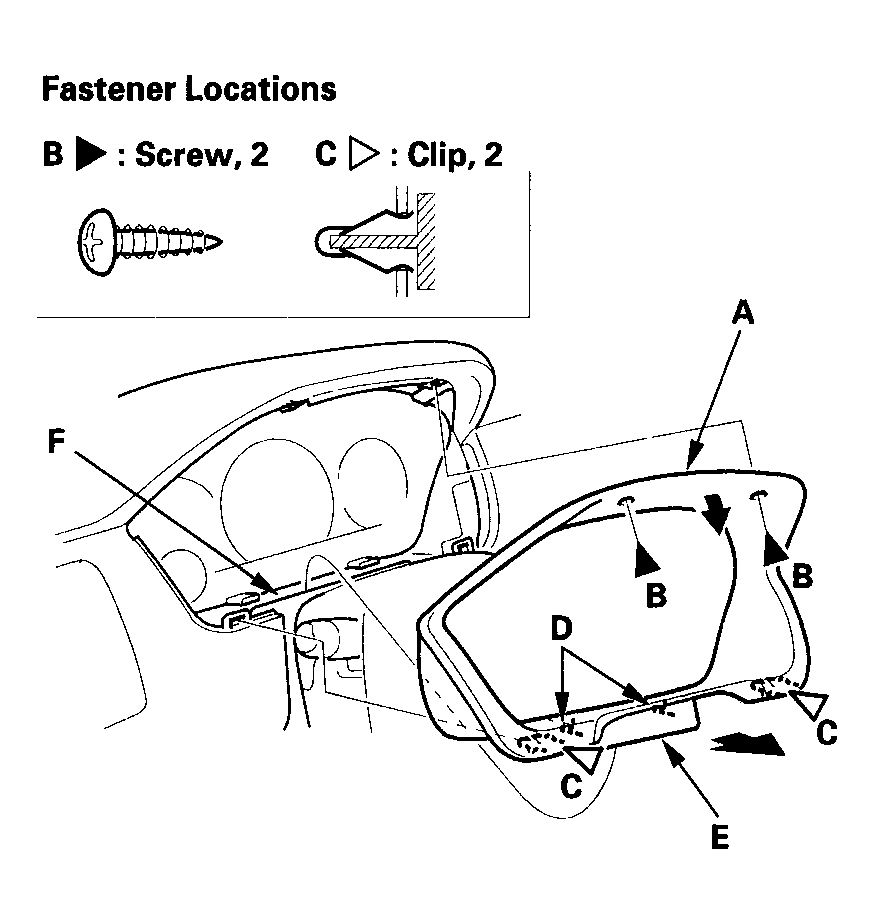

  Fig 1: Removing Instrument Panel
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the panel in the reverse order of removal, and note these items:
- Check for damaged or stress-whitened clips, and replace them with a new one.
- Push the clips into place securely.
