Center Panel Removal/Installation

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

KTC trim tool set SOJATP2014 *

* Available through the American Honda Tool and Equipment Program

NOTE:

Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
Take care not to scratch the dashboard and related parts.

Remove the left middle panel (see LEFT MIDDLE PANEL REMOVAL/ INSTALLATION ).

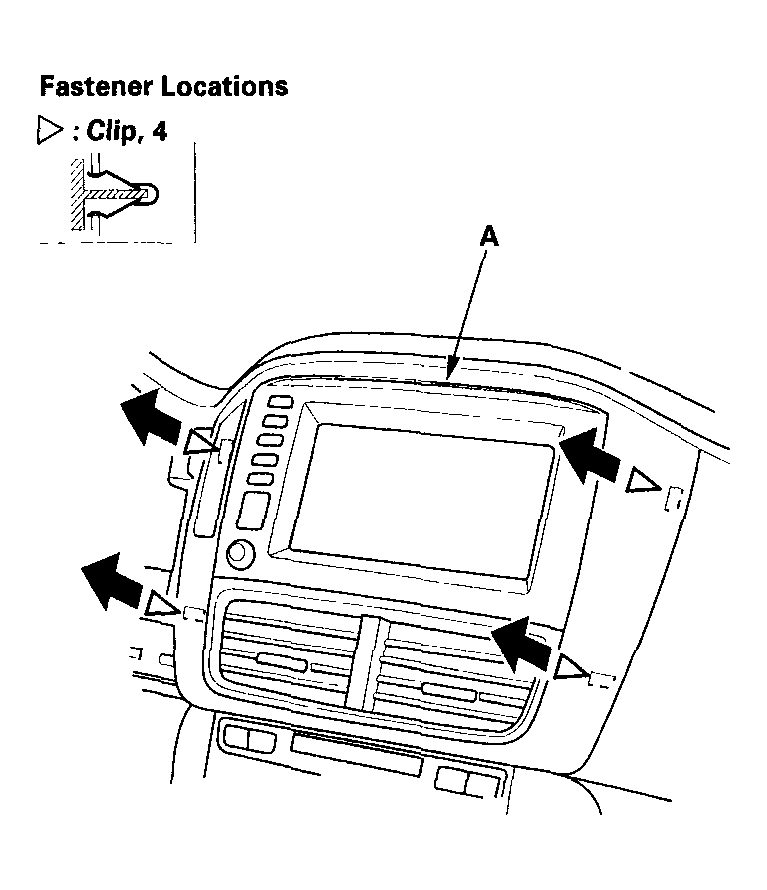

On the driver's side, gently pull out on the panel (A) to detach the side clips, then remove the panel.

Fig 1: Removing Panel (Driver's Side)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

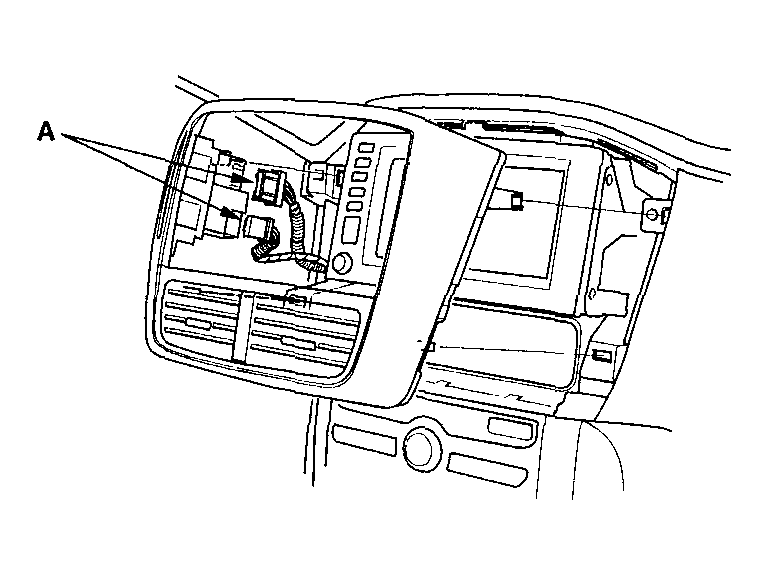

Disconnect the multi switch two connectors (A).

Fig 2: Disconnecting Multi Switch Two Connectors
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the panel in the reverse order of removal, and note these items:
- Make sure each connector is plugged in properly.
- Check for damaged or stress-whitened clips, and replace them with a new one.
- Push the clips into place securely.
