Starter Removal and Installation: Installation

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

Install the starter (A) using a new gasket (B), then install the harness clamp (C), and connect the starter cable (D) to the B terminal and BLK wire (E) to the solenoid S terminal. Make sure the crimped side of the ring terminal faces away from the starter when you connect it.

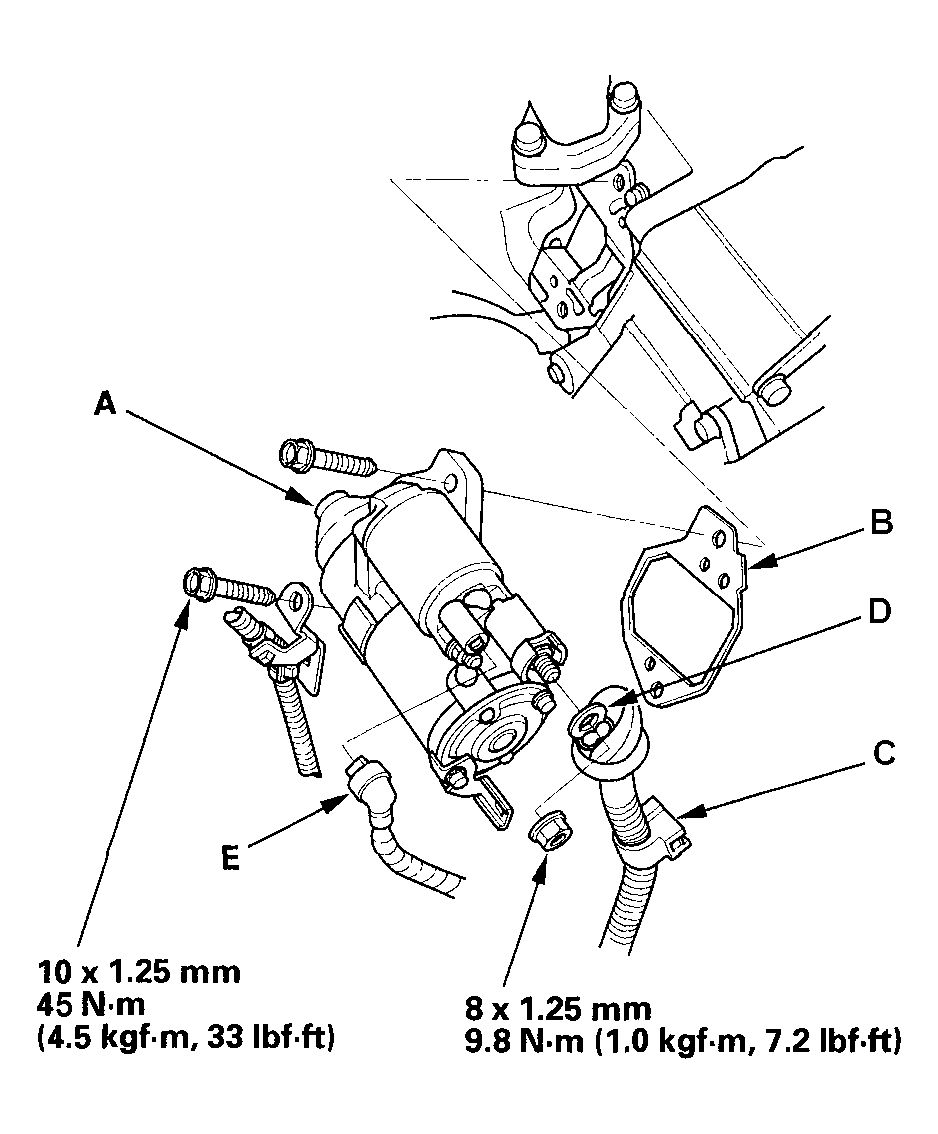

Fig 1: Connecting B Terminal And BLK/WHT Wire With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the automatic transmission fluid (ATF) dipstick.
Connect the positive cable to the battery first, then connect the negative cable.
Start the engine to make sure the starter works properly.
Enter the anti-theft codes for the radio and the navigation system, then enter the customer's audio presets.
Do the power window control unit reset procedure (see RESETTING THE POWER WINDOW CONTROL UNIT ).
Set the clock (on vehicles without navigation).
