Dust and Pollen Filter Replacement

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

Remove the glove box (see GLOVE BOX REMOVAL/INSTALLATION ).

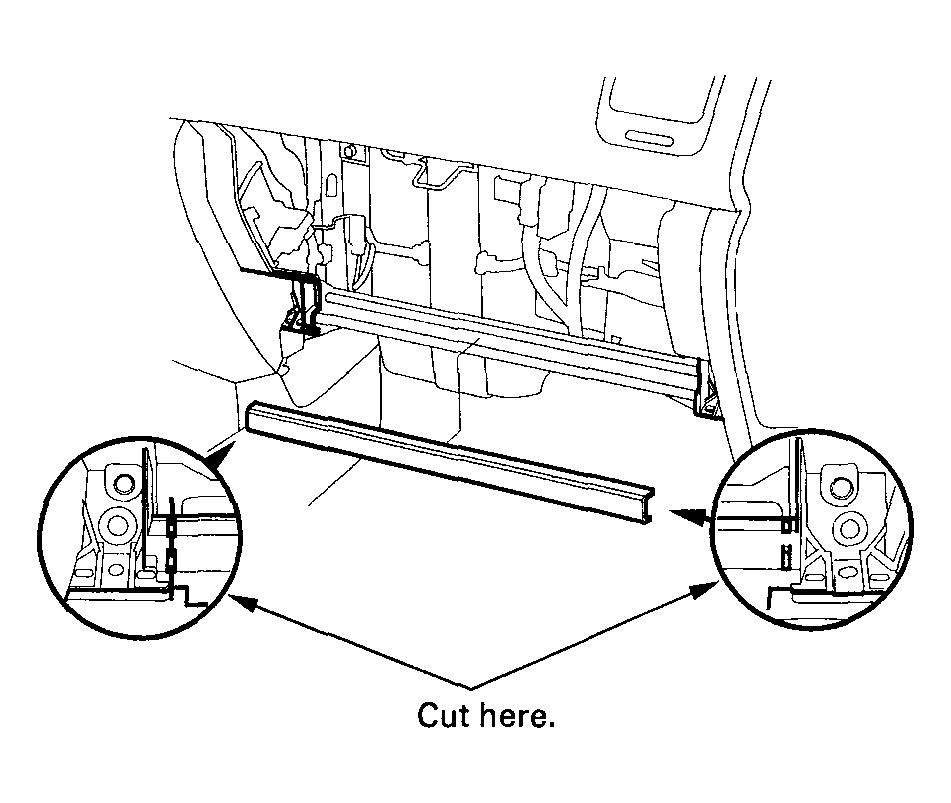

Cut the plastic cross brace in the glove box opening with diagonal cutters in the area shown in Fig 1, and discard it.

Fig 1: Cutting Plastic Cross Brace In Glove Box Opening
Courtesy of AMERICAN HONDA MOTOR CO., INC.

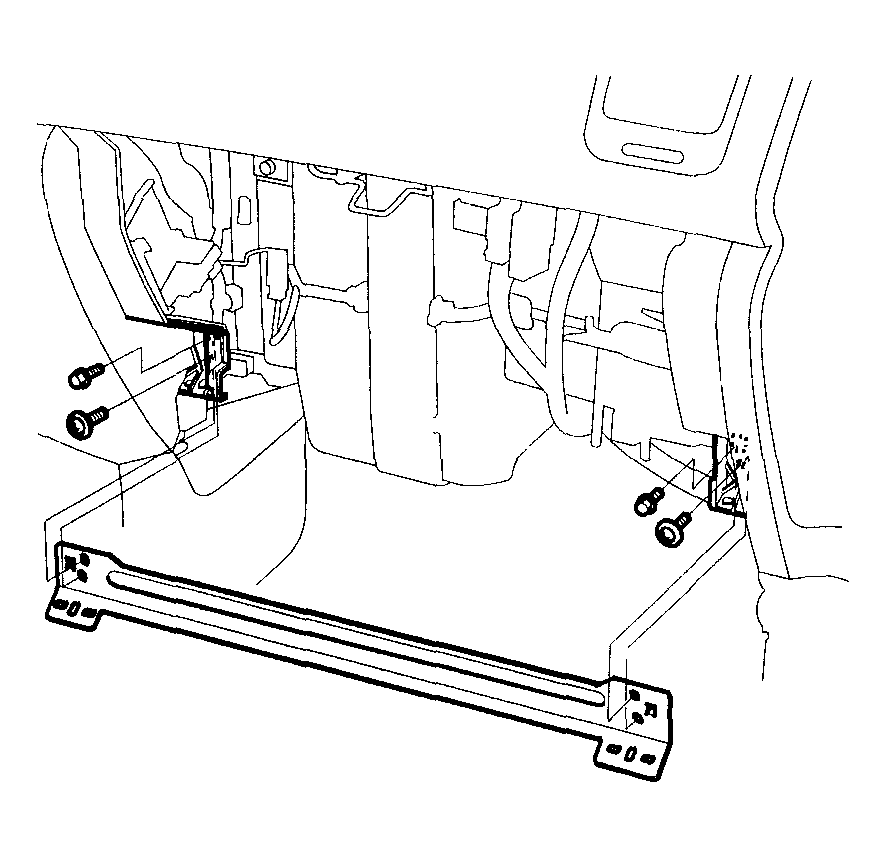

Remove the bolts, the screws, and the glove box frame.

Fig 2: Removing Glove Box Frame With Bolts & Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.

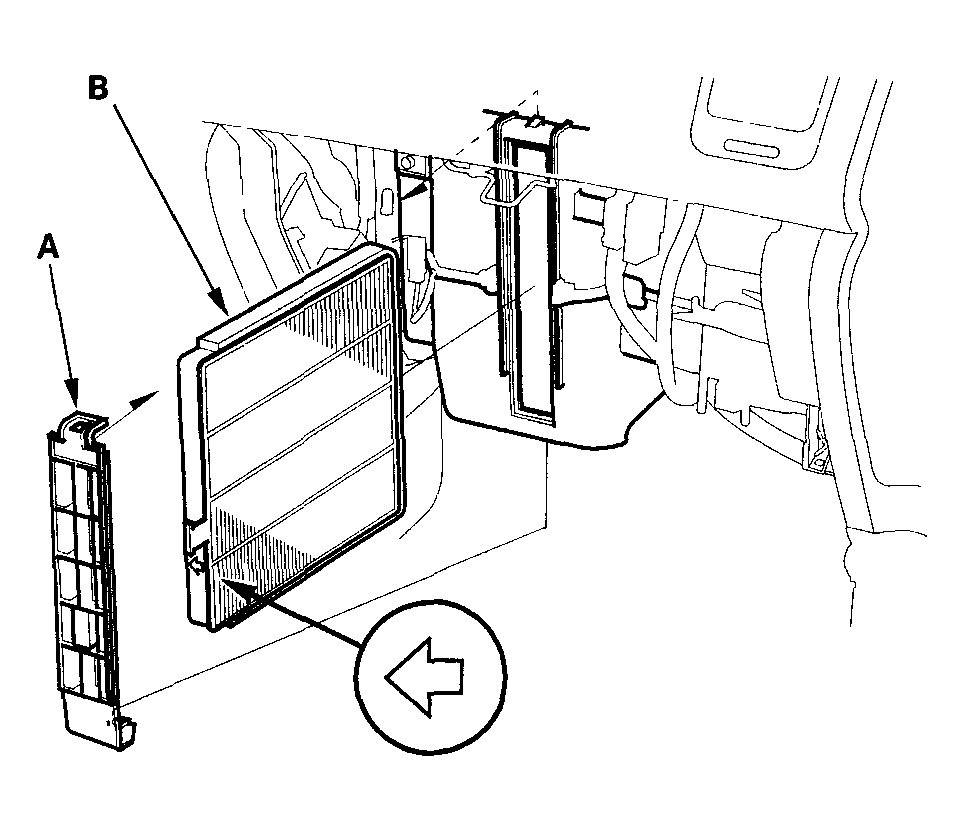

Remove the filter lid (A) from the evaporator, then pull out the dust and pollen filter (B).

Fig 3: Removing Filter Lid From Evaporator
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the filter in the reverse order of removal. Note the direction of the arrow. Make sure that there is no air leaking out of the evaporator.
Install the glove box frame and glove box in the reverse order of removal.
