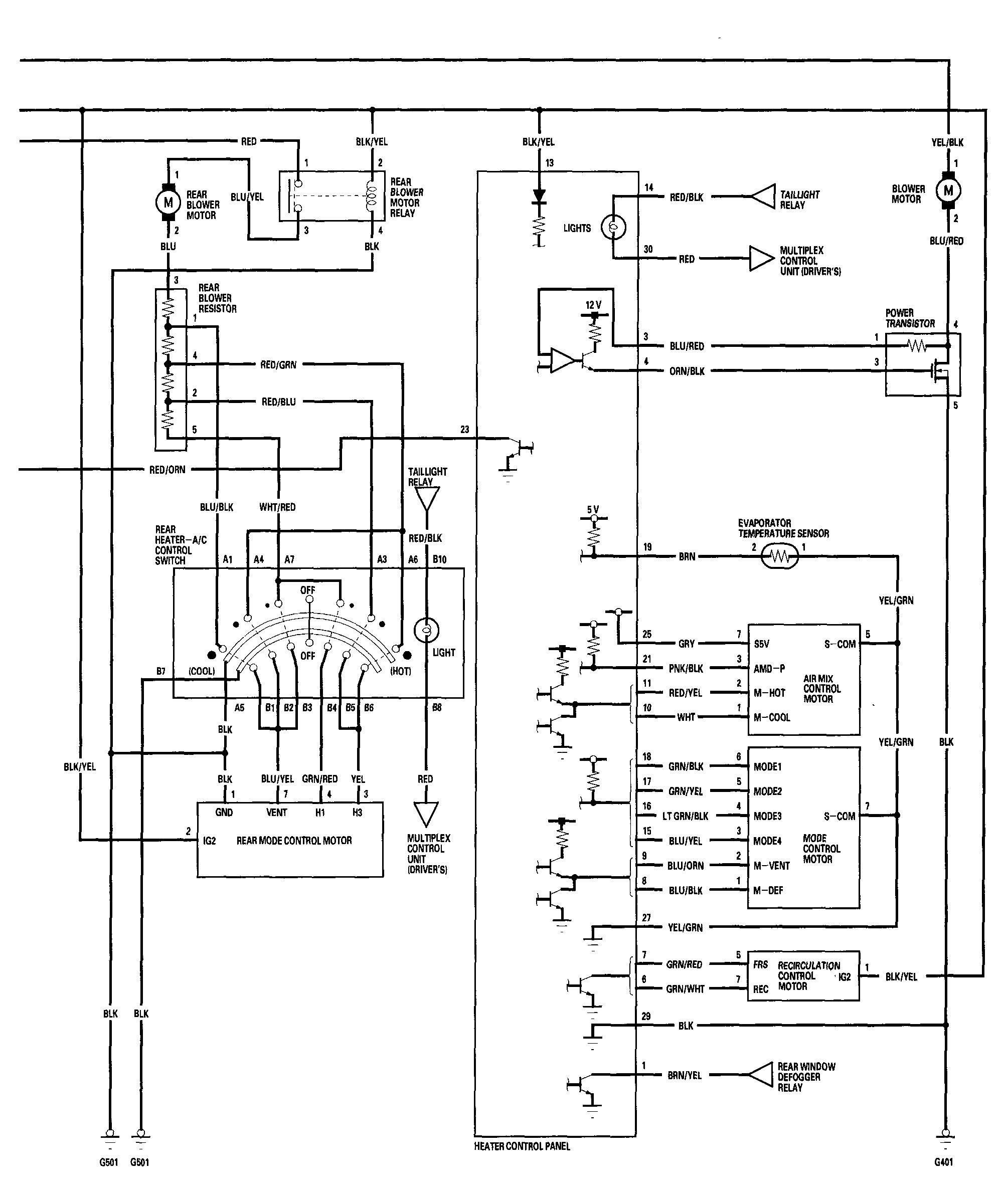

Fig 1: Heating/Air Conditioning System - Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

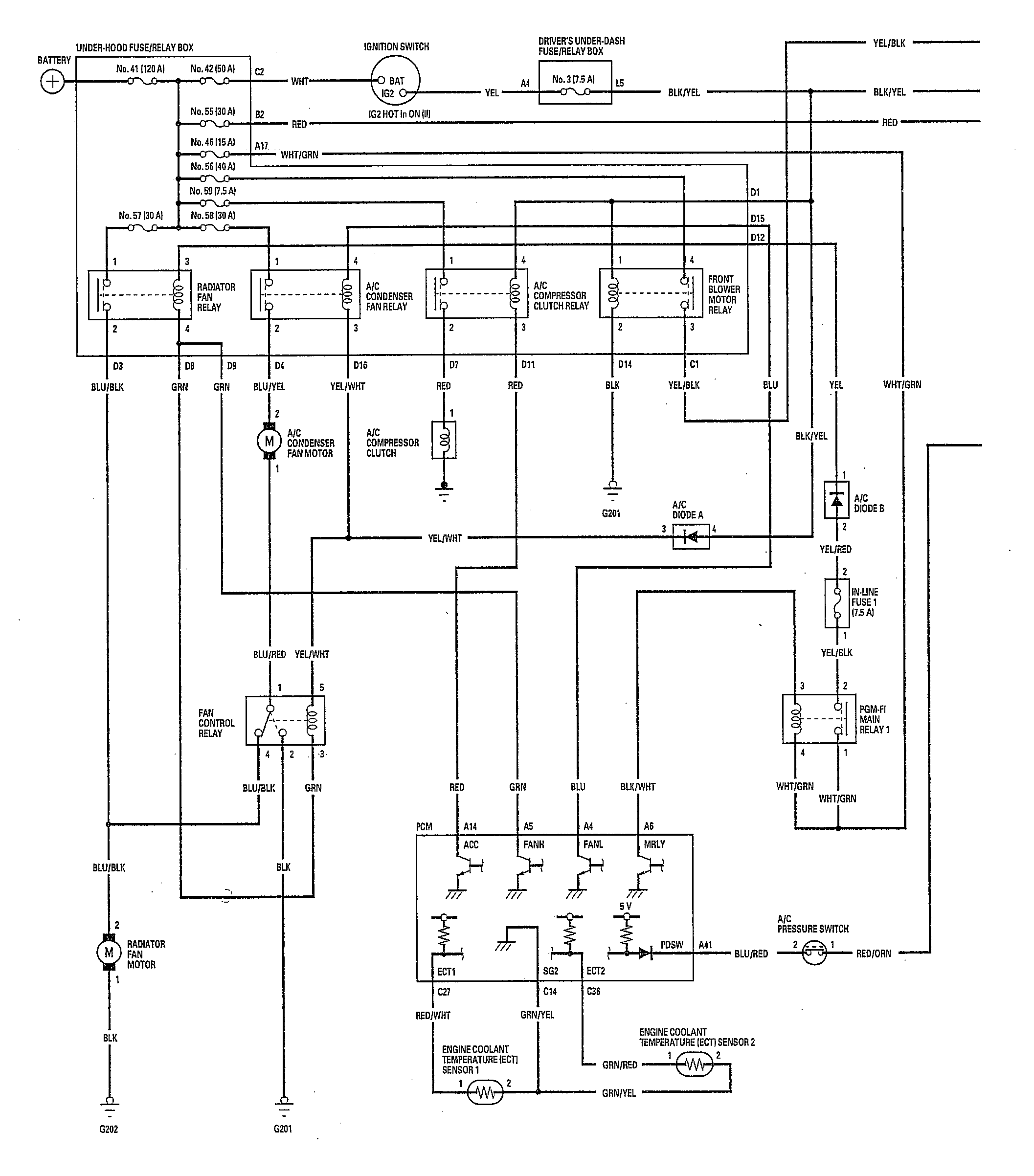

Fig 2: Heating/Air Conditioning System - Circuit Diagram (2 Of 2)
