Hood Latch Replacement

NOTE:

Remove the front bulkhead cover (see FRONT BULKHEAD COVER REPLACEMENT ).

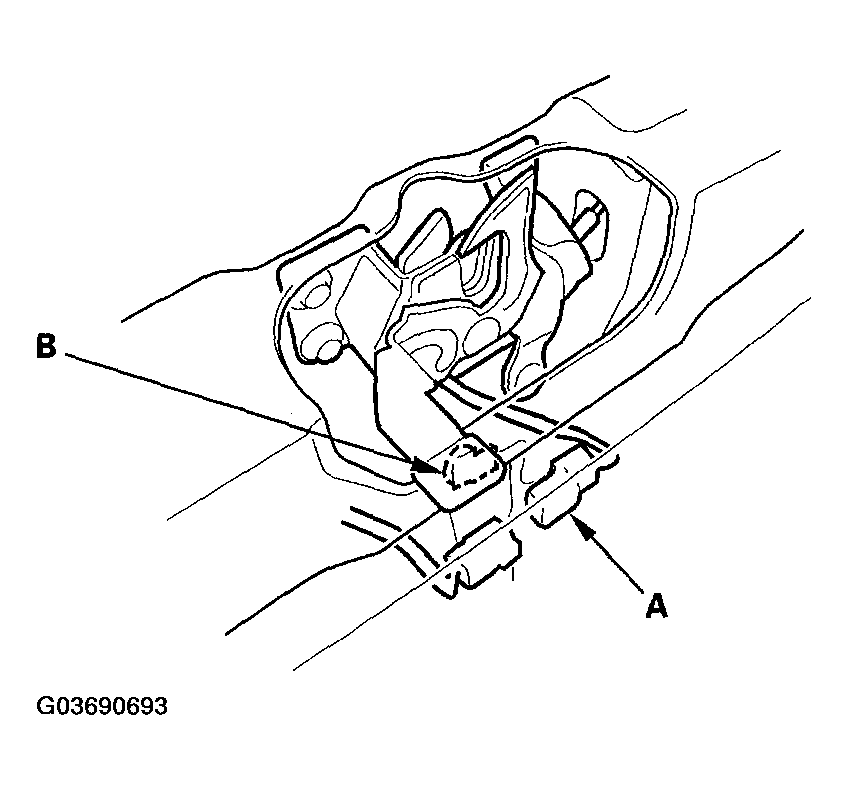

Detach the latch switch connector (A) from the connector clip (B), and disconnect it.

Fig 1: Detaching Latch Switch Connector From Connector Clip
Courtesy of AMERICAN HONDA MOTOR CO., INC.

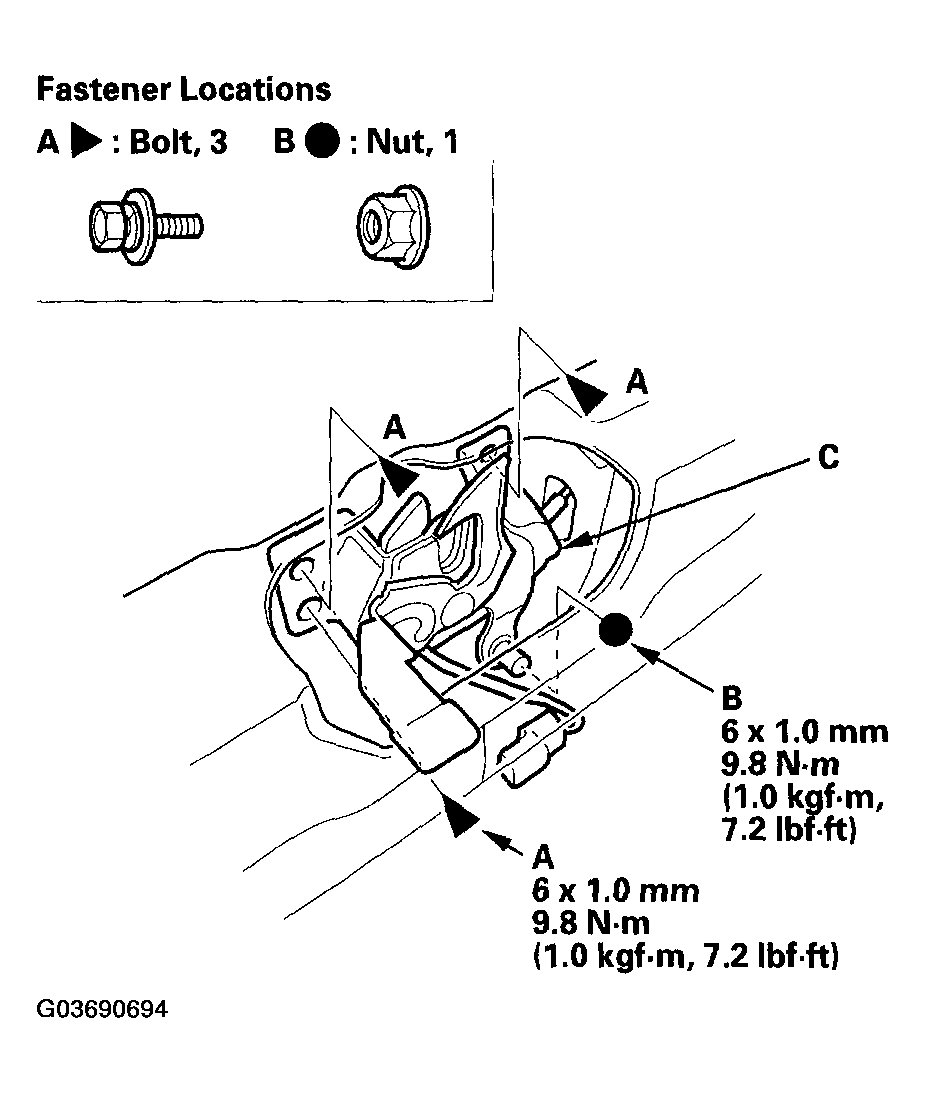

Remove the bolts (A) and nut (B), then remove the latch (C) from the body.

Fig 2: Removing Latch, Bolts, And Nut From Body With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

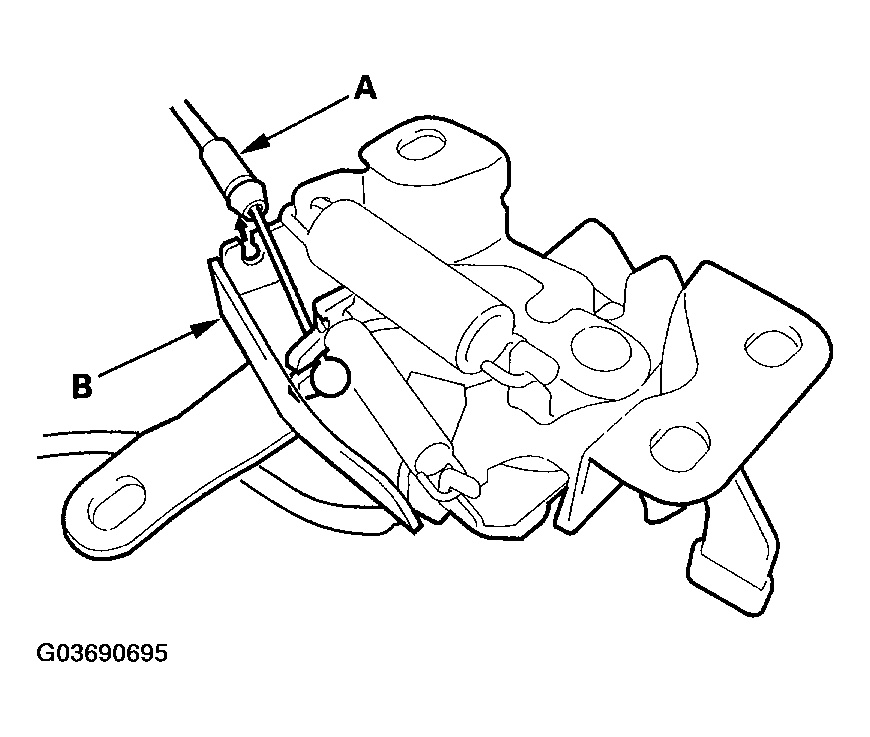

Disconnect the hood opener cable (A) from the hood latch (B). Take care not to kink the cable.

Fig 3: Disconnecting Hood Opener Cable From Hood Latch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the latch in the reverse order of removal, and note these items:

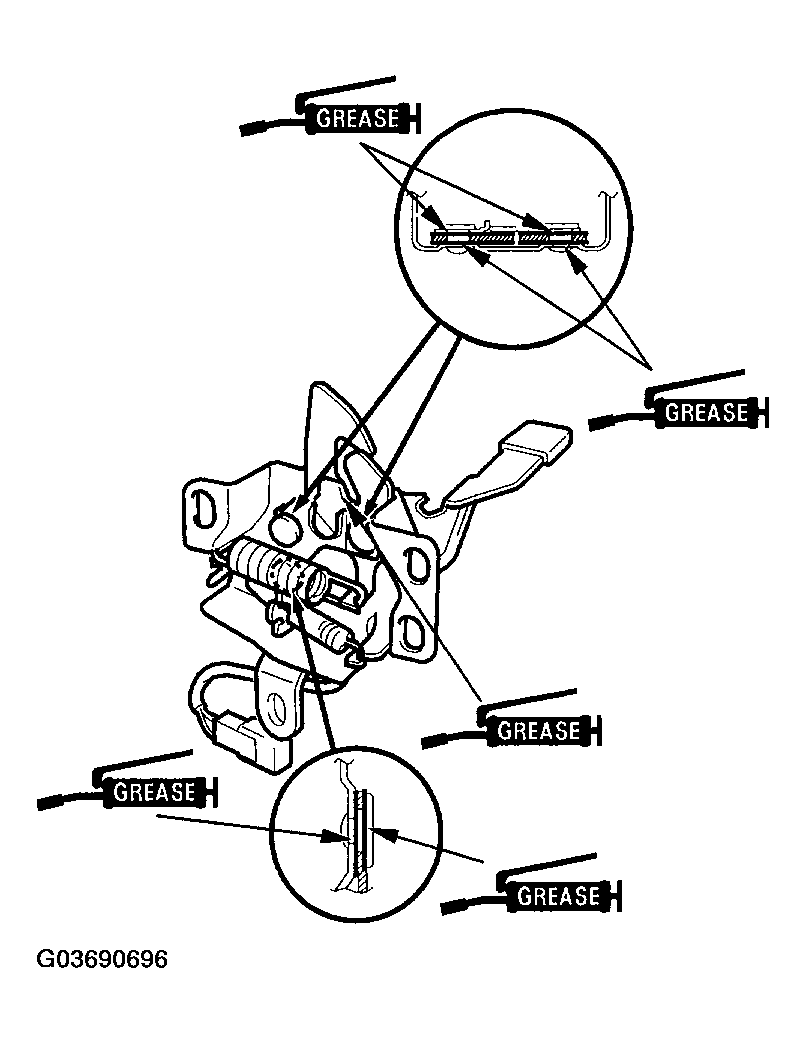

- Apply multipurpose grease to the hood latch as indicated by the arrows.
- Make sure the hood opener cable is connected properly and hood latch switch connector is plugged in properly.
- Make sure the cable actuates the latch before you close the hood.
- Adjust the hood latch alignment (see step 4 on ADJUSTMENT ).
- Make sure the hood opens properly and locks securely.

  Fig 4: Applying Multipurpose Grease To Hood Latch
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
