Exploded View

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

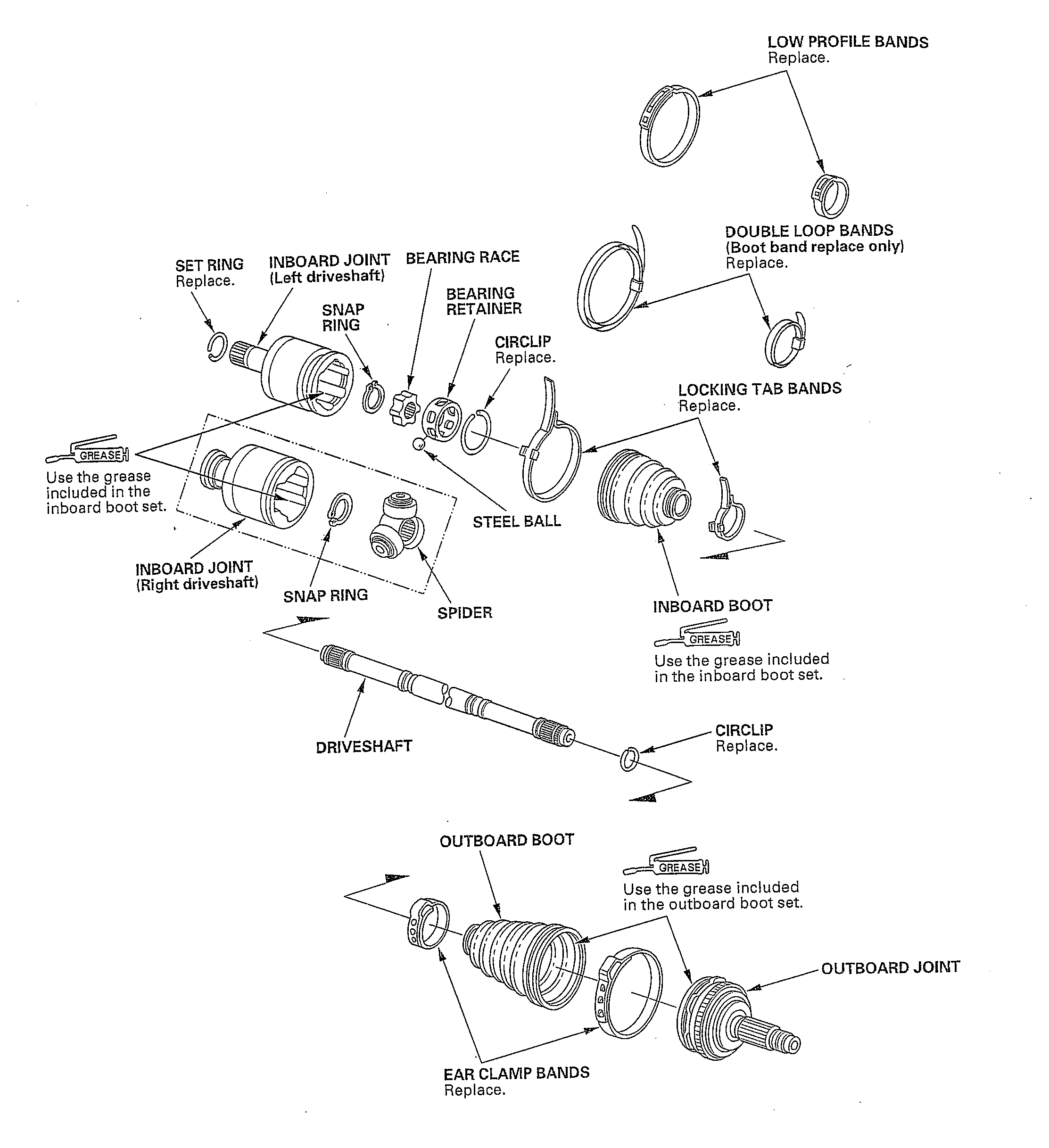

Fig 1: Exploded View Of Front Driveshaft Reassembly Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

Boot band tool, KD-3191 or equivalent, commercially available
Boot band pincers, Kent-Moore J-35910 or equivalent, commercially available

NOTE: Refer to Fig 1 as needed during this procedure.
