Driveshaft Inspection: Notes

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check the inboard boot (A) and the outboard boot (B) on the driveshaft (C) for cracks, damage, leaking grease, and loose boot bands (D). If any damage is found, replace the boot and boot bands.

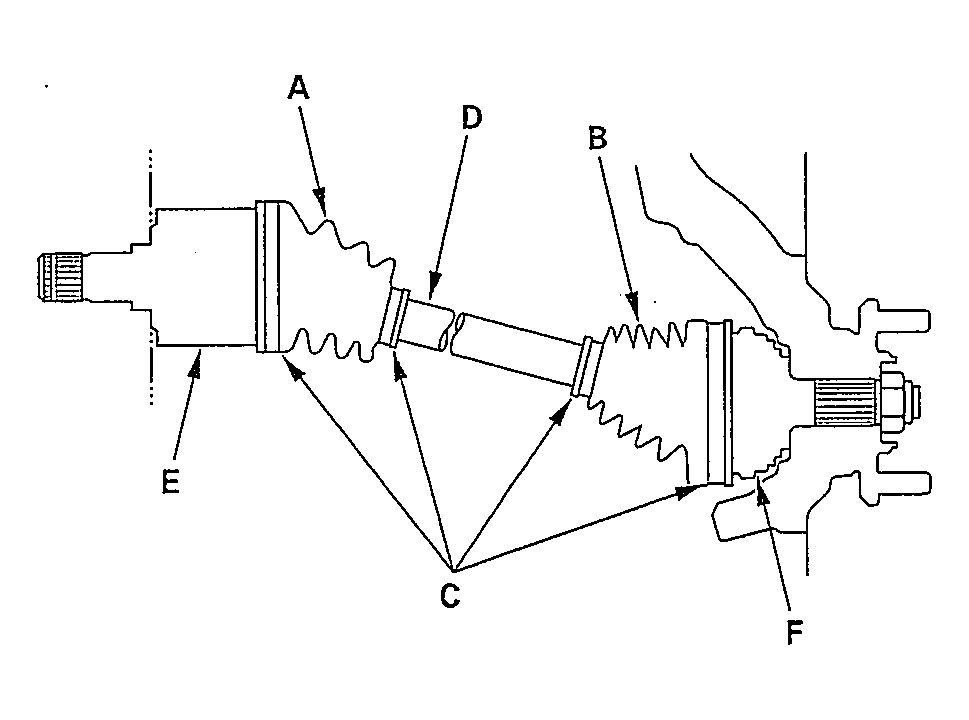

    Fig 1: Checking Inboard Boot & Outboard Boot On Driveshaft
    G04246362Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Check the drivershaft (D) for cracks and damage. If any damage is found, replace the driveshaft.
  3. Check the inboard joint (E) and the outboard joint (F) for cracks and damage. If any damage is found, replace the inboard joint or the outboard joint as an assembly.
  4. Hold the inboard joint and turn the front wheel by hand, then make sure the joints is not excessively loose. If necessary, replace the inboard joint or the outboard joint as an assembly.
