Shift Lever Disassembly/Reassembly

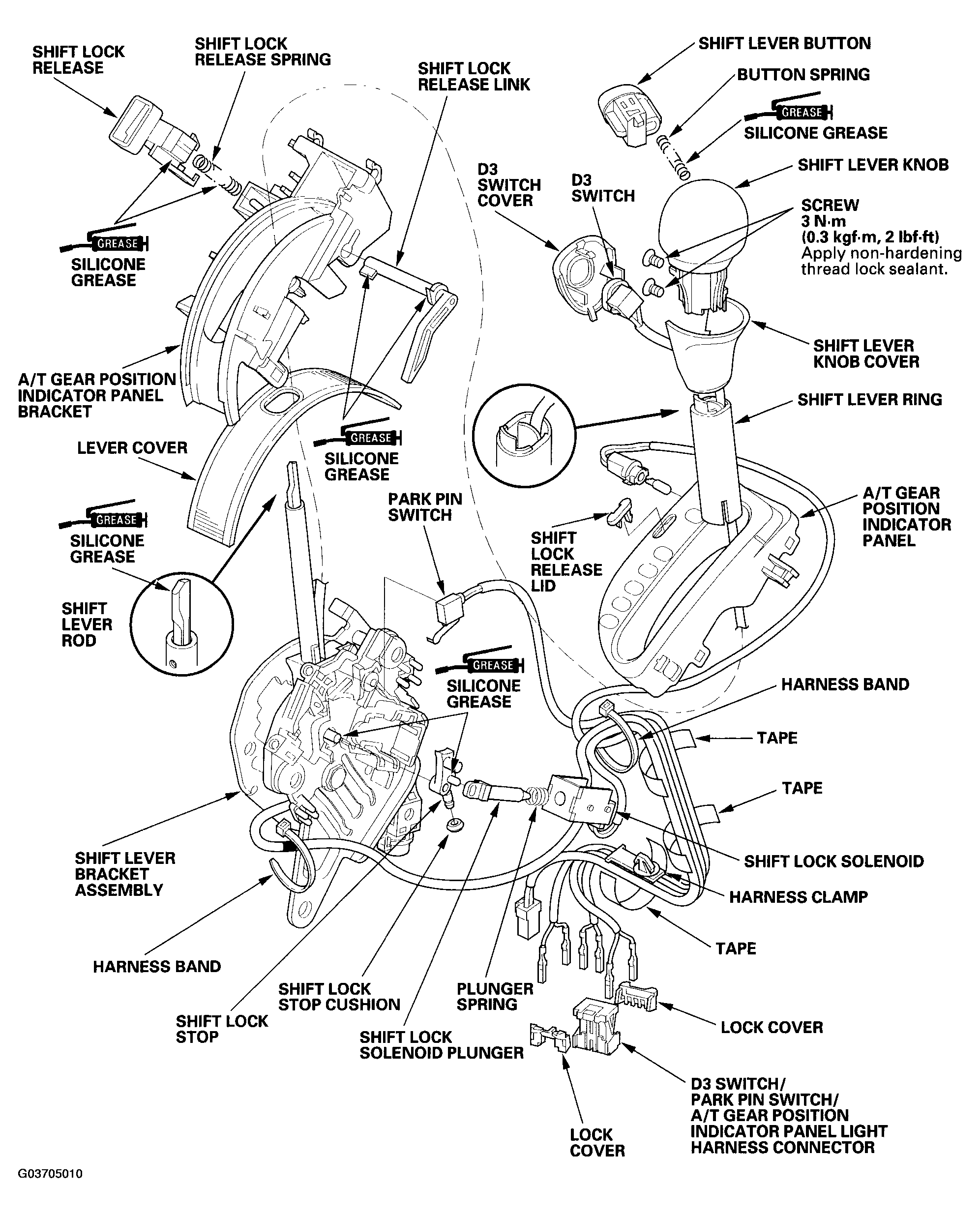

Fig 1: Disassembly/Reassembly Of Shift Lever

G03705010

Courtesy of AMERICAN HONDA MOTOR CO., INC.
