Rocker Arm Oil Control Solenoid (VTEC Solenoid Valve) Replacement

  1. Remove the intake manifold cover (see step 1 in REMOVAL ).
  2. Disconnect the rocker arm oil control solenoid (VTEC solenoid valve) 2P connector (A).

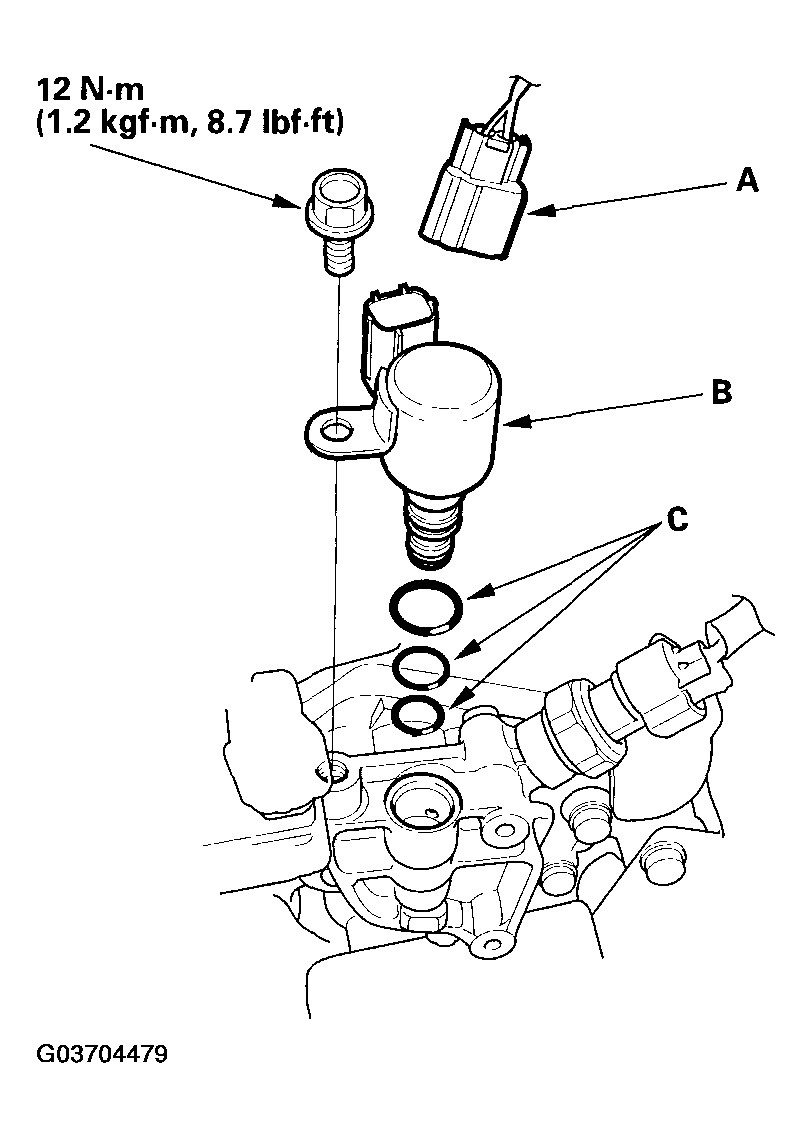

    Fig 1: Disconnecting Rocker Arm Oil Control Solenoid (VTEC Solenoid Valve) 2P Connector
    G03704479Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the rocker arm oil control solenoid (VTEC solenoid valve) (B).
  4. Install the rocker arm oil control solenoid (VTEC solenoid valve) in the reverse order of removal with new O-rings (C).
