J35A7 engine

  1. Inspect the belt for cracks and damage. If the belt is cracked or damaged, replace it.
  2. Check that the auto-tensioner indicator (A) on the oil pump not beyond the edge of the indicator rib (B) on the auto-tensioner. If the pointer is beyond the indicator rib, replace the drive belt (see DRIVE BELT REPLACEMENT  ).

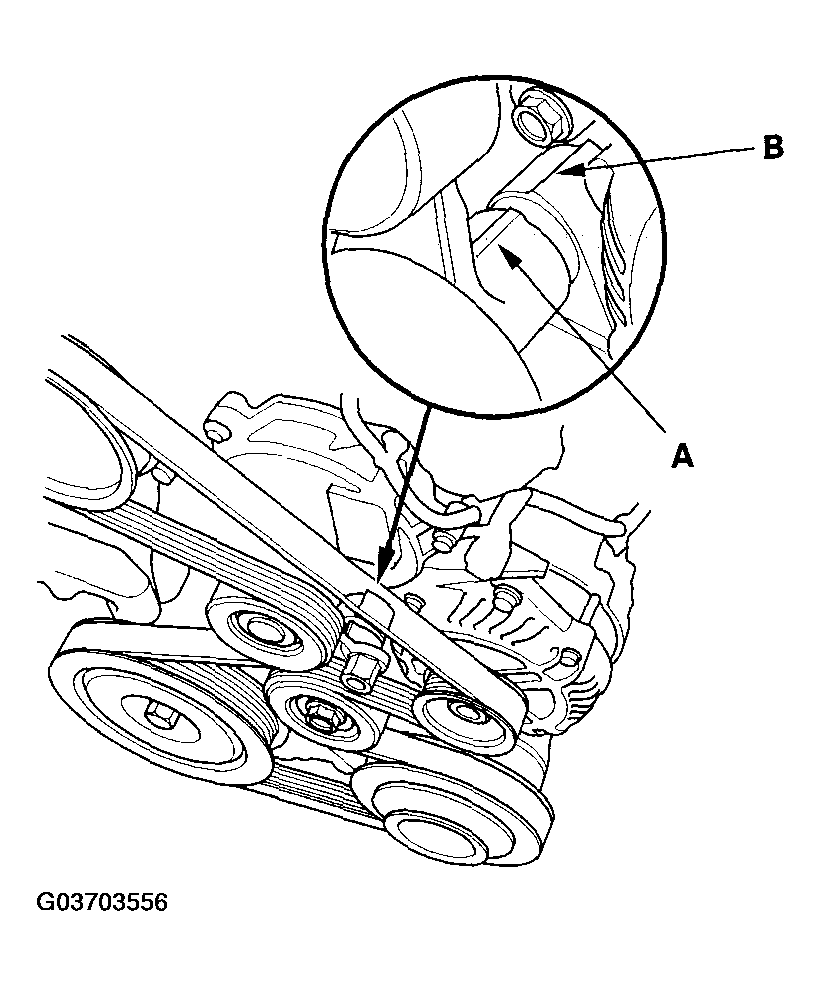

Fig 1: Checking Auto-Tensioner Indicator On Oil Pump Not Beyond Edge Of Indicator Rib (J35A7)
G03703556Courtesy of AMERICAN HONDA MOTOR CO., INC.
