J35A6 engine

  1. Inspect the belt for cracks and damage. If the belt is cracked or damaged, replace it.
  2. Check that the auto-tensioner indicator (A) is within the standard range (B) as shown in Fig 1. If it is out of the standard range, replace the drive belt (see DRIVE BELT REPLACEMENT  ).

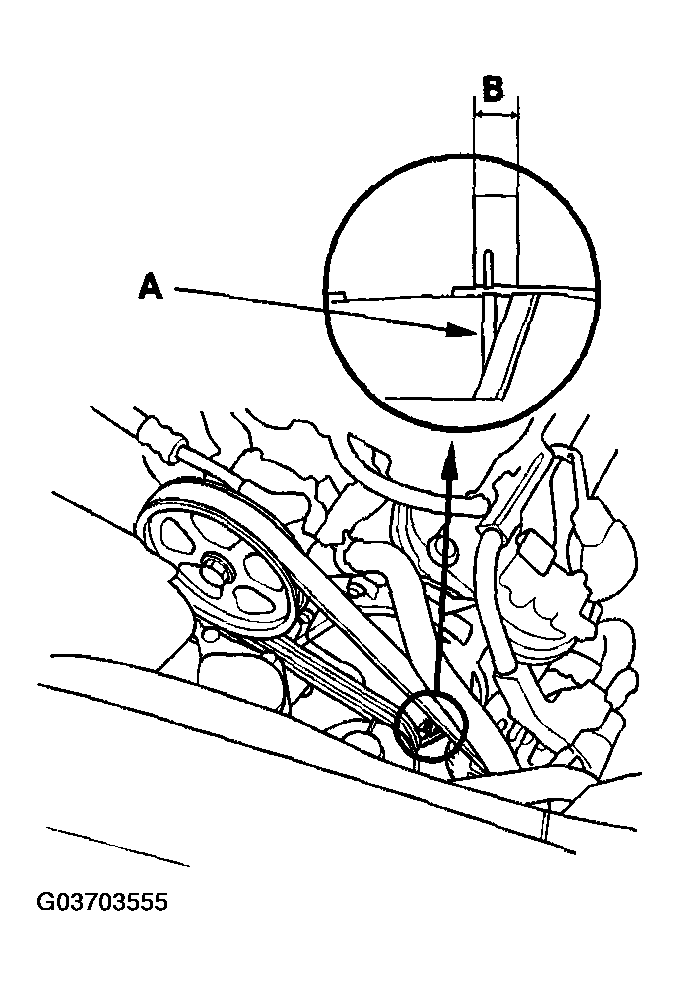

Fig 1: Checking Auto-Tensioner Indicator Within Standard Range (J35A6 Engine)
G03703555Courtesy of AMERICAN HONDA MOTOR CO., INC.
