Engine Mount Control System
>>
Circuit Diagram
Circuit Diagram

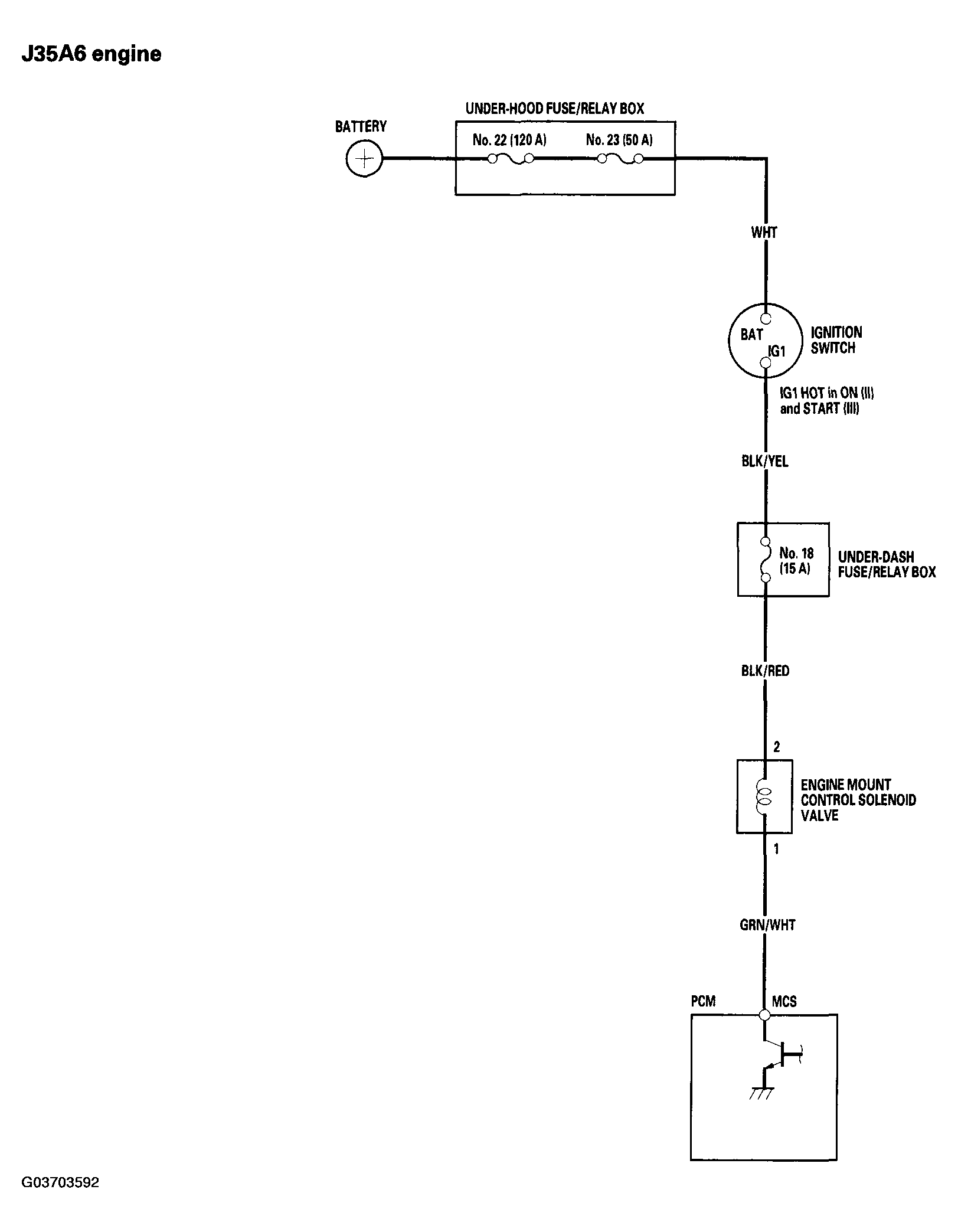

Fig 1: Circuit Diagram - Engine Mount Control System (J35A6 Engine)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
