Exploded View

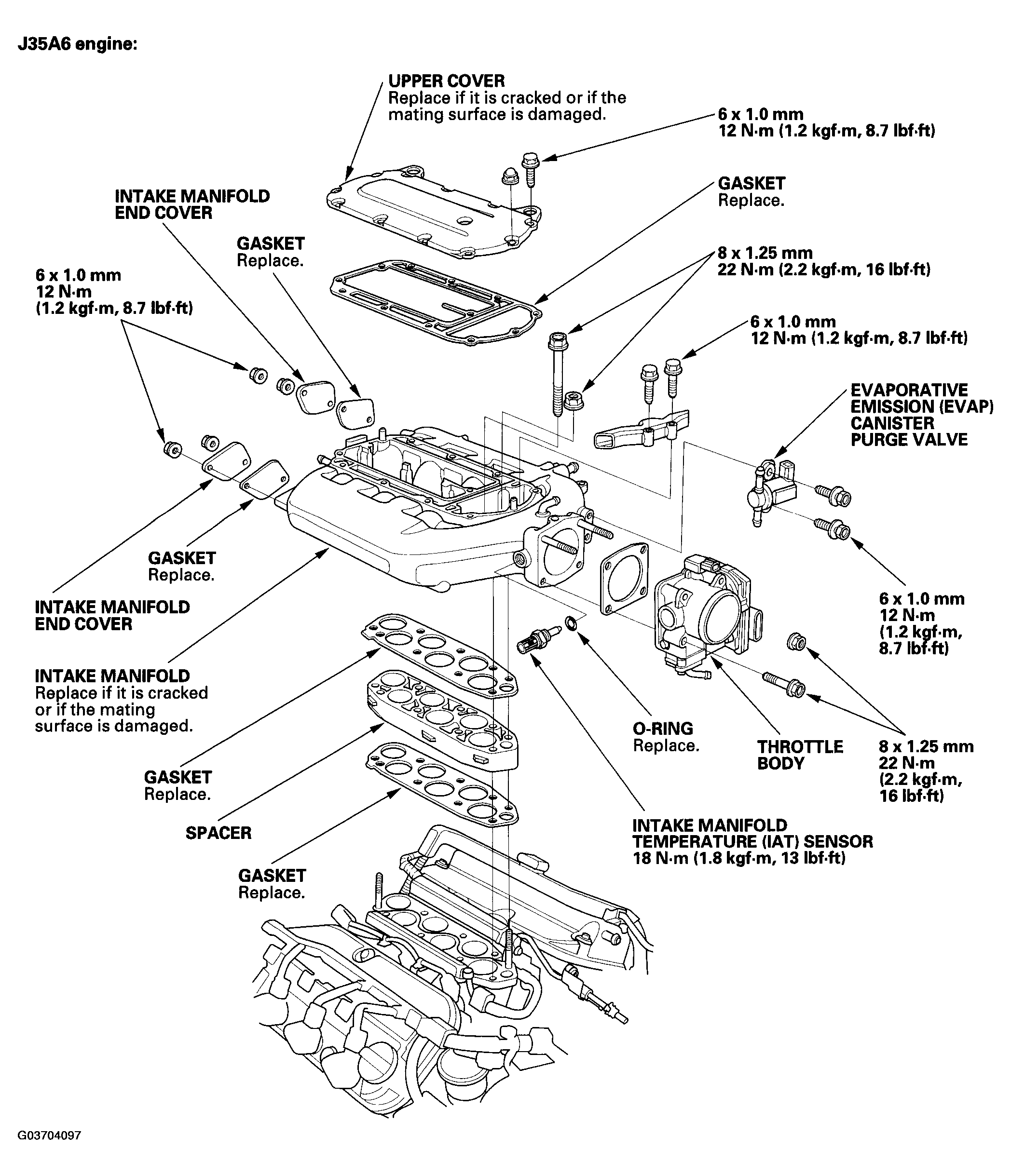

Fig 1: Exploded View Of Intake Manifold With Torque Specifications (J35A6 Engine)
G03704097Courtesy of AMERICAN HONDA MOTOR CO., INC.

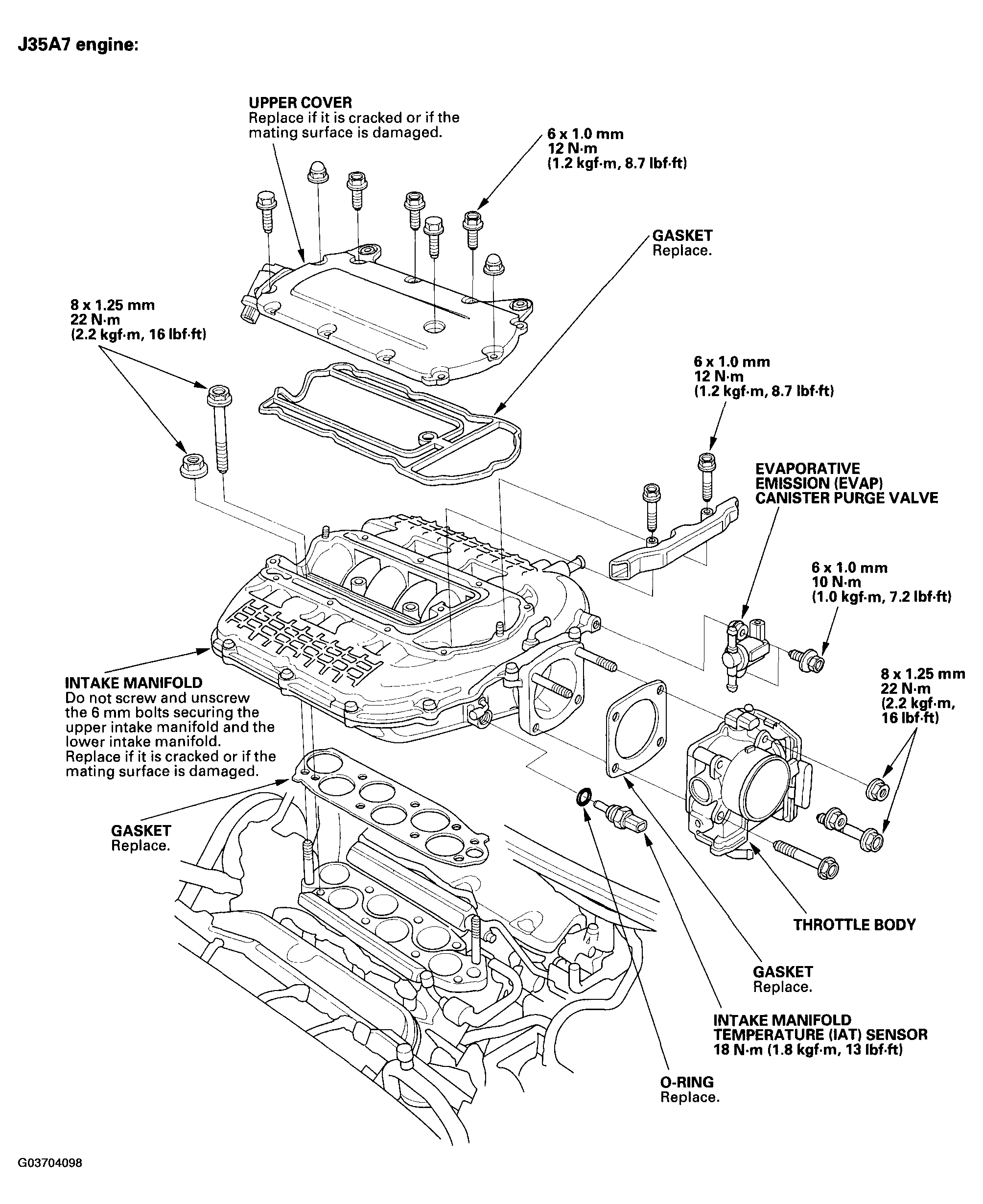

Fig 2: Exploded View Of Intake Manifold With Torque Specifications (J35A7 Engine)
G03704098Courtesy of AMERICAN HONDA MOTOR CO., INC.
