Horn Test/Replacement

  1. Remove the right front inner fender (see FRONT INNER FENDER REPLACEMENT ).

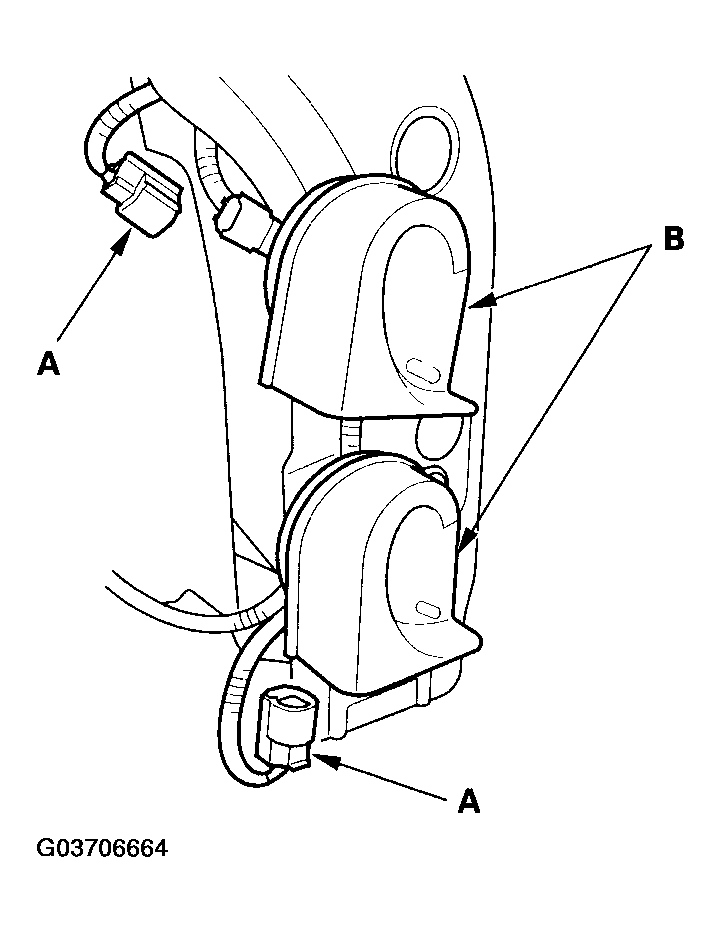

  2. Disconnect the 1P connectors (A) from each horn (B).
    Fig 1: Disconnecting 1P Connectors From Each Horn
    G03706664Courtesy of AMERICAN HONDA MOTOR CO., INC.

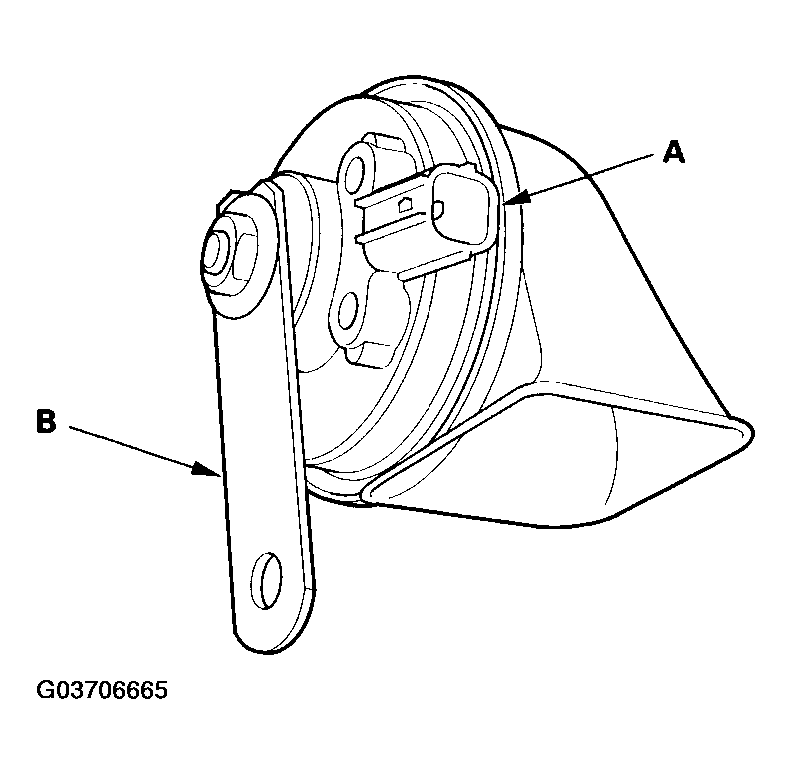

  3. Test the horn by connecting battery power to the terminal (A) and ground to the bracket (B). The horn should sound.
    Fig 2: Connecting Battery Power To Terminal And Ground To Bracket
    G03706665Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If it fails to sound, replace it.
