Horn Switch Test

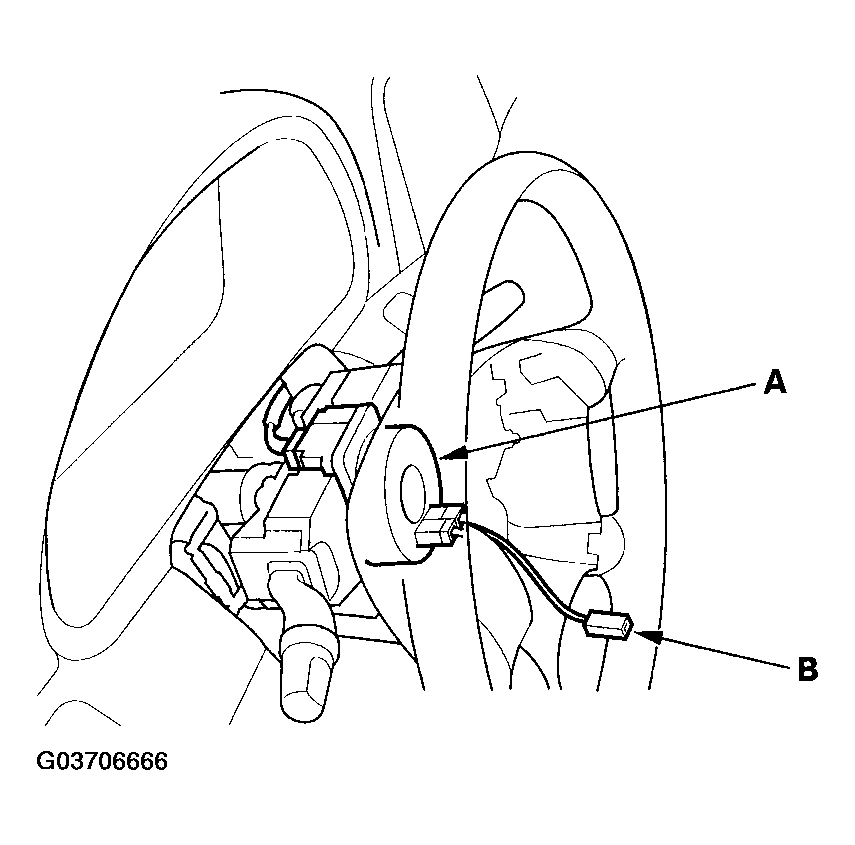

- Remove the driver's airbag assembly (see DRIVER'S AIRBAG REPLACEMENT
), and disconnect the horn switch IP positive terminal from the cable reel (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Using a jumper wire, connect the cable reel side 1P connector (B) to body ground.
- If the horns sound, replace the horn plate.
- If the horns do not sound, go to step 3.
- Remove the steering column covers (see STEERING COLUMN REMOVAL AND INSTALLATION
).

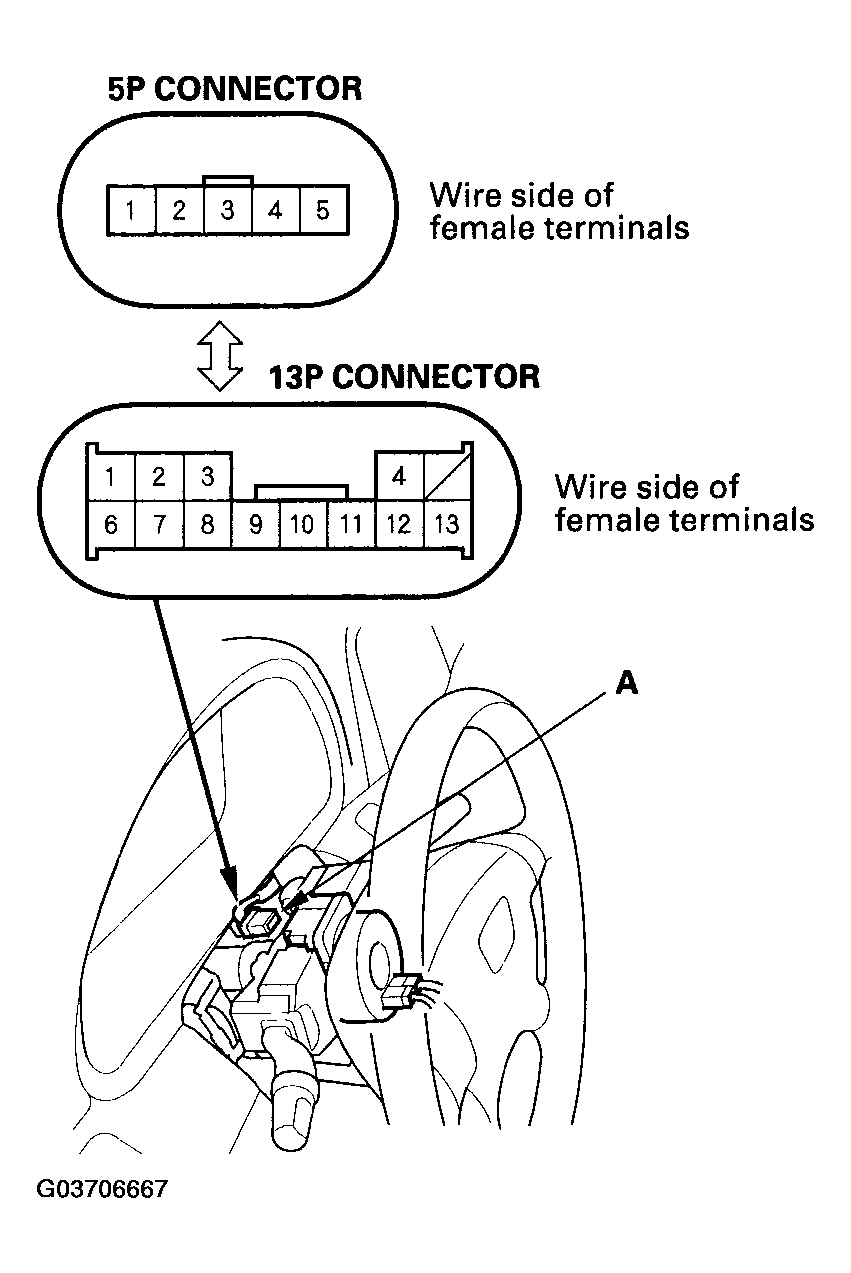

- Disconnect the dashboard wire harness 13P (or 5P) connector (A) from the cable reel.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Using a jumper wire, connect the No. 1 terminal of the dashboard wire harness 13P (or 5P) connector to body ground.
- If the horns sound, replace the cable reel (see CABLE REEL REPLACEMENT
).
- If the horns don't sound, check these items:
- - No. 13 (20 A) fuse in the under-hood fuse/relay box.
- - Relay control module in the under-hood fuse/relay box.
- - Horns (see CIRCUIT DIAGRAM
).
- - An open in the wire.
