Alternator Removal and Installation: Installation

Install the alternator, then tighten the mounting bolt (A) and alternator bracket mounting bolt (B).

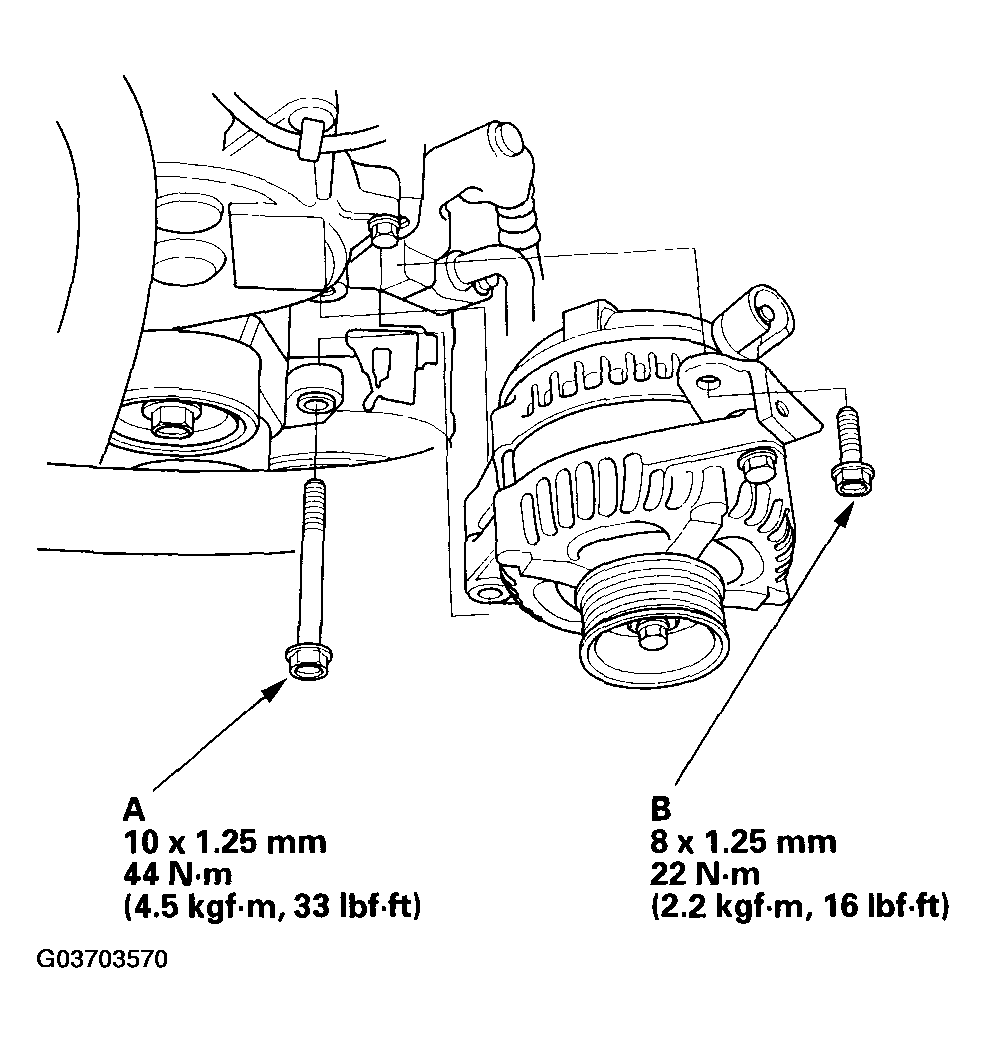

Fig 1: Installing Alternator & Tightening Mounting And Bracket Mounting Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the washer reservoir mount bolt.
Install the A/C suction line clamp (A) and the A/C receiver line stay (B).

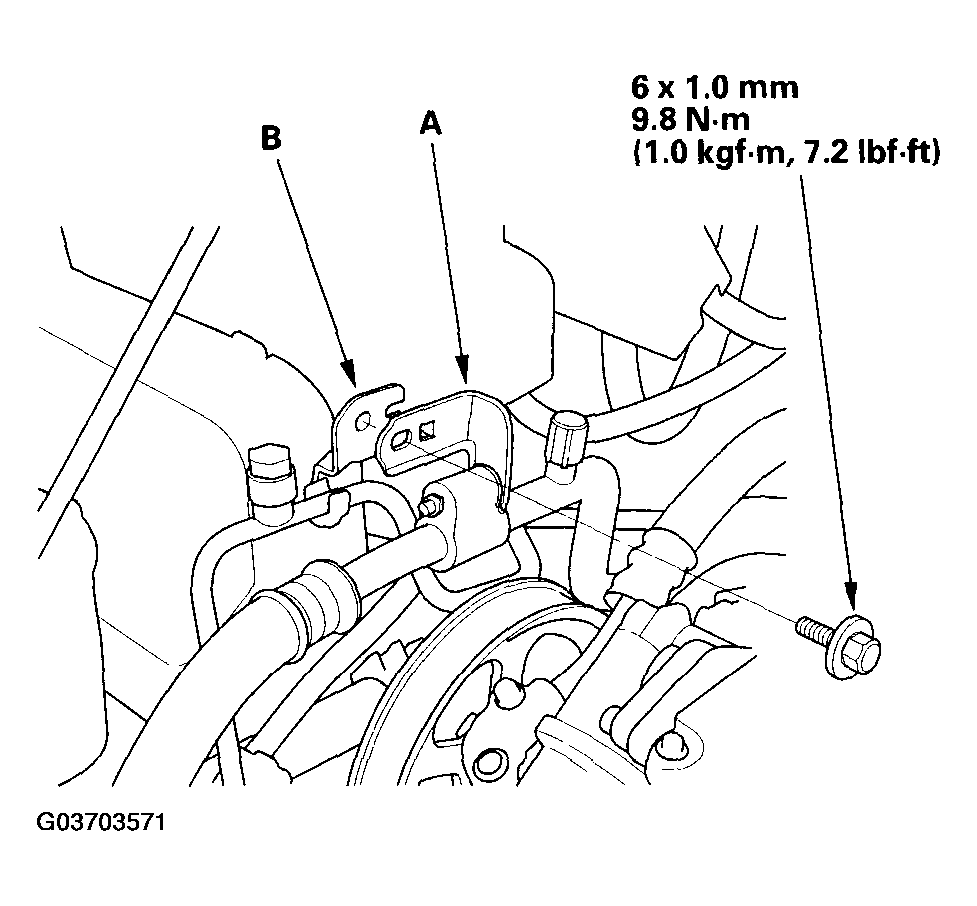

Fig 2: Installing A/C Suction Line Clamp & A/C Receiver Line Stay
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect the alternator connector (A) and BLK wire (B) to the alternator.

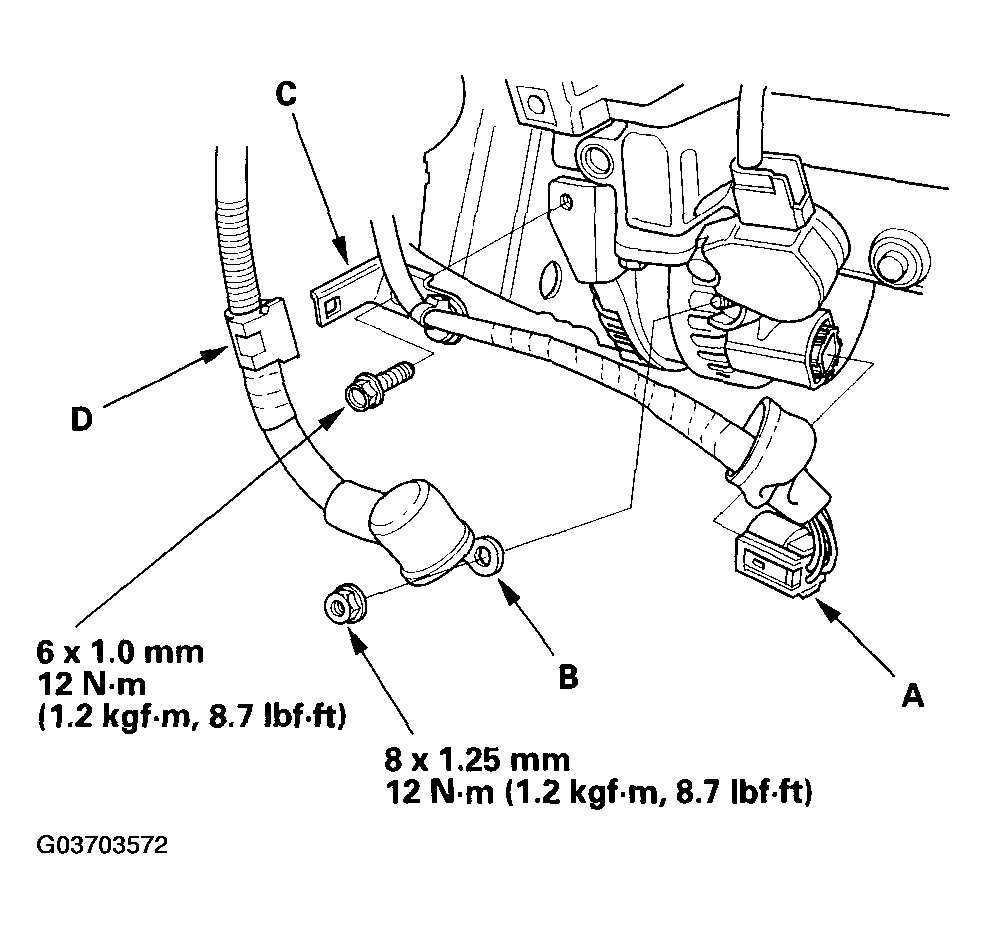

Fig 3: Connecting Alternator Connector & BLK Wire To Alternator
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the bracket (C), then install the harness clamp (D).
Install the drive belt (see DRIVE BELT REPLACEMENT ).
Install the intake manifold cover.
Connect the positive cable to the battery first, then connect the negative cable.
Enter the anti-theft codes for the radio and the navigation system, then enter the customer's audio presets.
Set the clock.
