Circuit Diagram

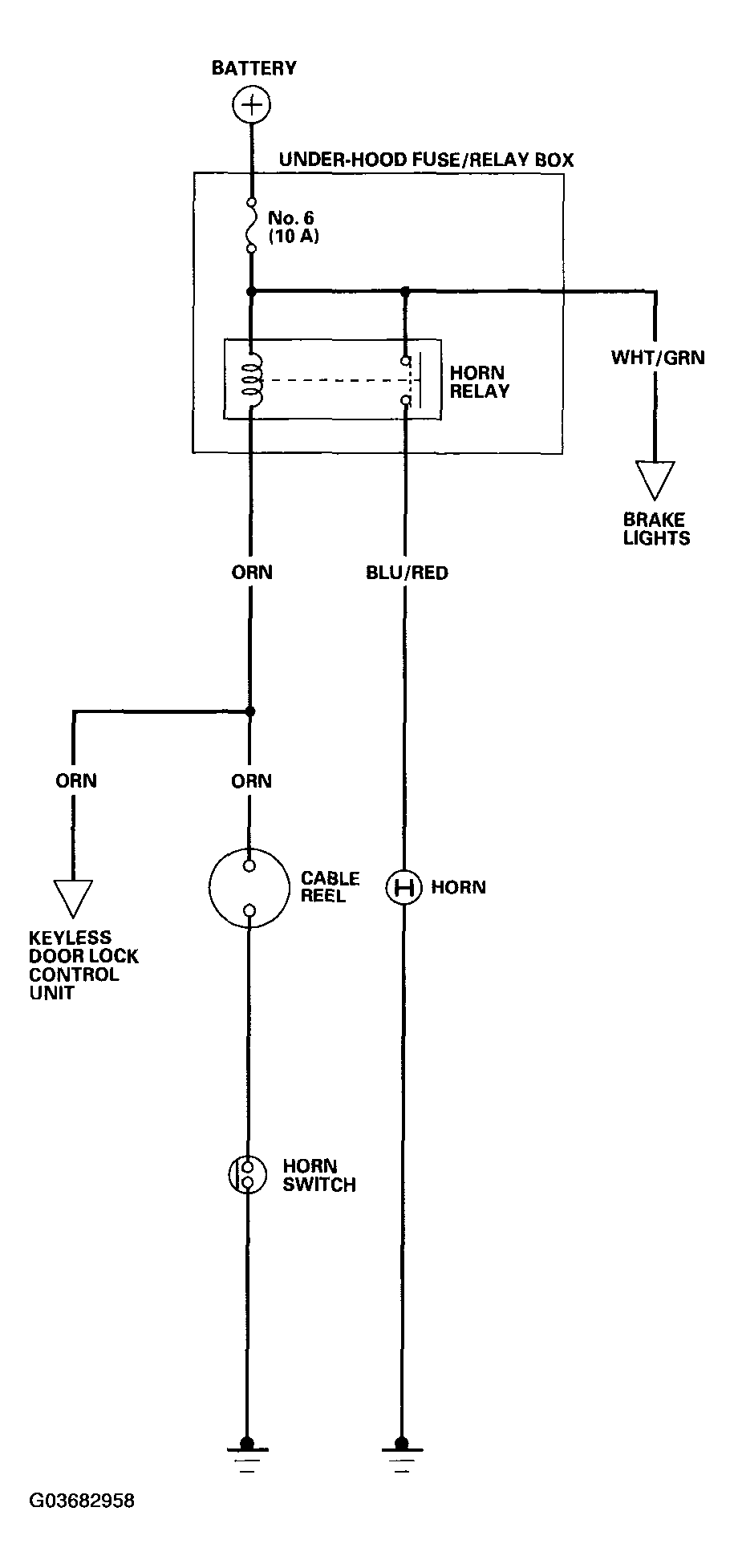

Fig 1: Circuit Diagram - Horn

G03682958

Courtesy of AMERICAN HONDA MOTOR CO., INC.
