Starter Overhaul: A/T: Disassembly/Reassembly

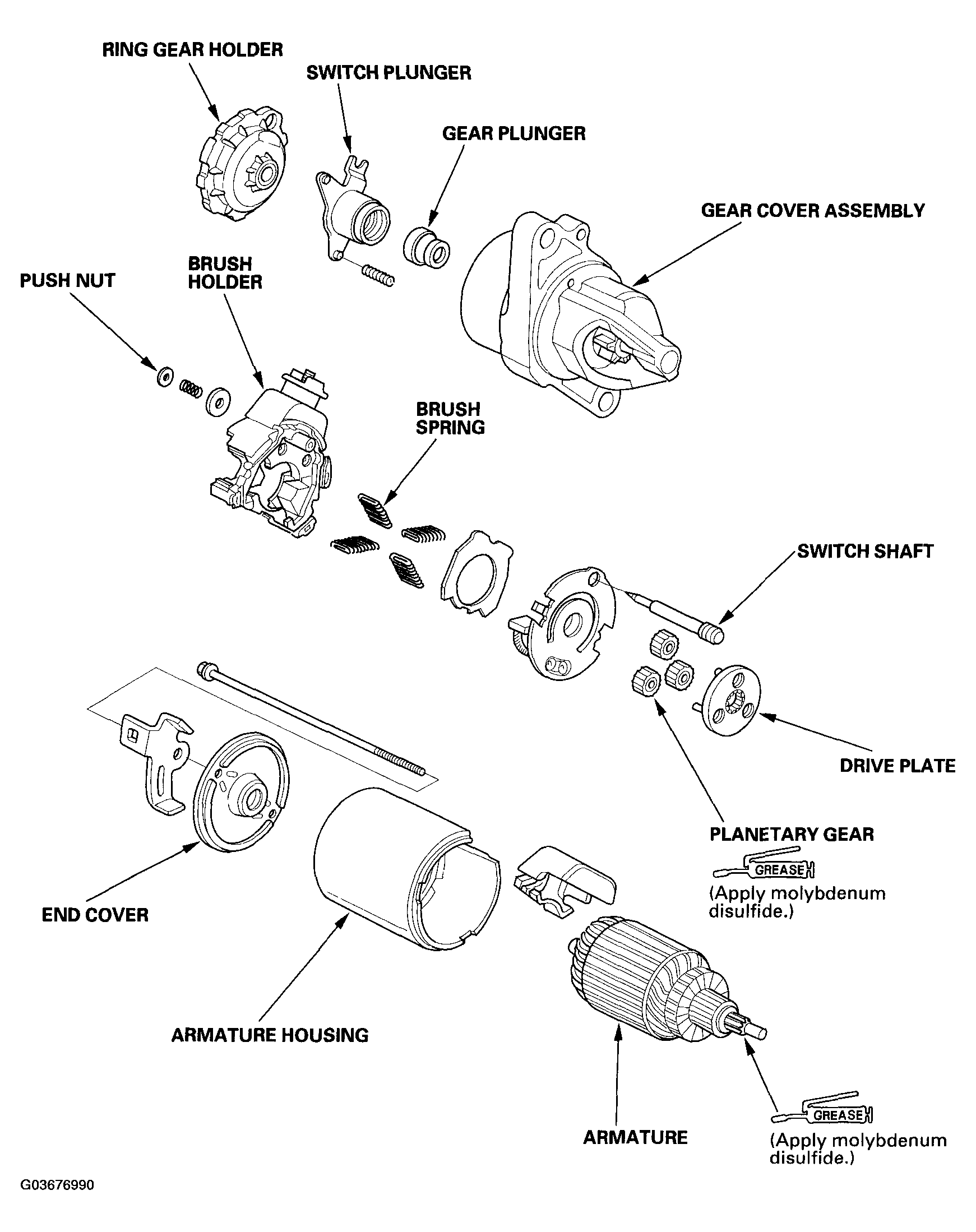

Fig 1: Exploded View Of Starter Assembly (A/T)

G03676990

Courtesy of AMERICAN HONDA MOTOR CO., INC.
