Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Right Side Of Engine Compartment (EX)

G00268410

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Right Side Of Engine Compartment

G00268411

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Right Side Of Engine Compartment

G00268412

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Front Of Engine Compartment

G00268413

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 5: Front Of Engine Compartment

G00268414

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 6: Left Side Of Engine Compartment

G00268415

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 7: Left Side Of Engine Compartment

G00268416

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 8: Left Side Of Engine Compartment

G00268417

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 9: Right Side Of Engine

G00430914

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 10: Middle Of Engine

G00268420

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 11: Middle Of Engine

G00430915

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 12: Middle Of Engine Compartment

G00268422

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 13: Front Of Engine (Intake Removed)

G00268423

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 14: Right Side Of Engine Compartment (Intake Removed)

G00268424

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 15: Left Side Of Intake Manifold

G00268425

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 16: Left Side Of Intake Manifold

G00268426

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 17: Left Side Of Intake Manifold

G00268427

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 18: Left Side Of Engine

G00268428

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 19: Left Side Of Engine

G00268429

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 20: Left Side Of Engine

G00268430

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 21: Transmission Housing

G00268431

Courtesy of AMERICAN HONDA MOTOR CO., INC.

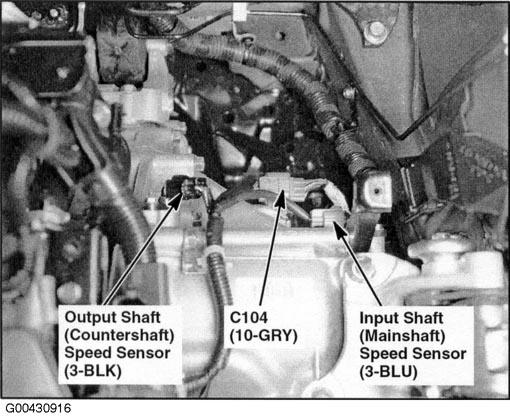

Fig 22: Transmission Housing (A/T)

G00430916

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 23: Transmission Housing (A/T)

G00430917

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 24: Right Side Of Engine Compartment (LX & EX)

G00268434

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 25: Rear Of Engine Compartment

G00268435

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 26: Left Side Of Engine Compartment

G00268436

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 27: Under Left Side Of Cowl Cover

G00268437

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 28: Inside Steering Wheel

G00268439

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 29: In Steering Column Cover

G00268440

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 30: Behind Left Side Of Dash

G00268441

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 31: Behind Left Side Of Dash

G00268442

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 32: Under Left Side Of Dash

G00268443

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 33: Behind Right Side Of Dash

G00268444

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 34: Under Left Side Of Dash

G00268445

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 35: Under Left Side Of Dash

G00268446

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 36: Under Left Side Of Dash

G00268447

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 37: Under Left Side Of Dash

G00268448

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 38: Under Middle Of Dash

G00268449

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 39: Under Middle Of Dash

G00268450

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 40: Under Middle Of Dash

G00268451

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 41: Under Middle Of Dash

G00268452

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 42: Under Middle Of Dash

G00268453

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 43: Under Middle Of Dash

G00268454

Courtesy of AMERICAN HONDA MOTOR CO., INC.

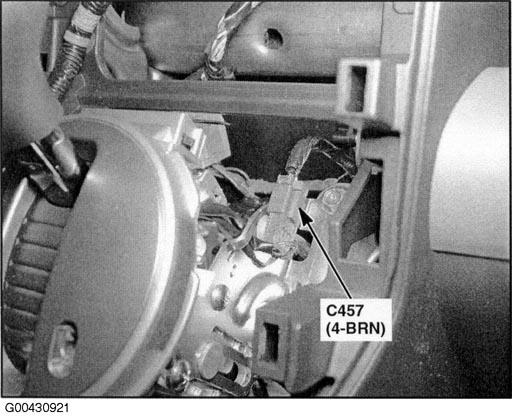

Fig 44: Under Middle Of Dash (A/T)

G00430921

Courtesy of AMERICAN HONDA MOTOR CO., INC.

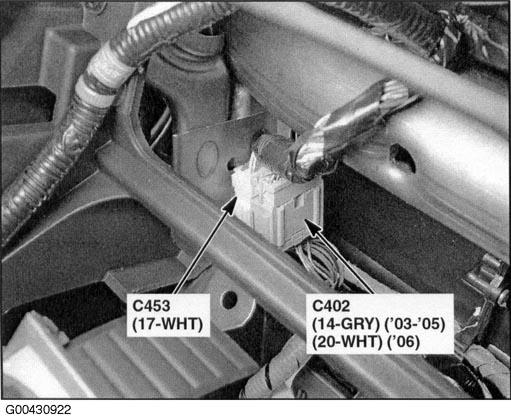

Fig 45: Under Middle Of Dash

G00430922

Courtesy of AMERICAN HONDA MOTOR CO., INC.

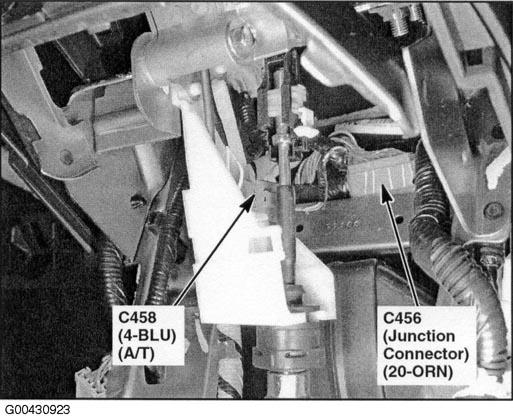

Fig 46: Under Middle Of Dash

G00430923

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 47: Under Middle Of Dash

G00268458

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 48: Under Middle Of Dash

G00268459

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 49: Under Middle Of Dash

G00268460

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 50: Under Middle Of Dash

G00268461

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 51: Under Middle Of Dash

G00268462

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 52: Behind Glove Box

G00268463

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 53: Behind Glove Box

G00268464

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 54: Behind Glove Box

G00268465

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 55: Behind Glove Box

G00268466

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 56: Behind Glove Box

G00268467

Courtesy of AMERICAN HONDA MOTOR CO., INC.

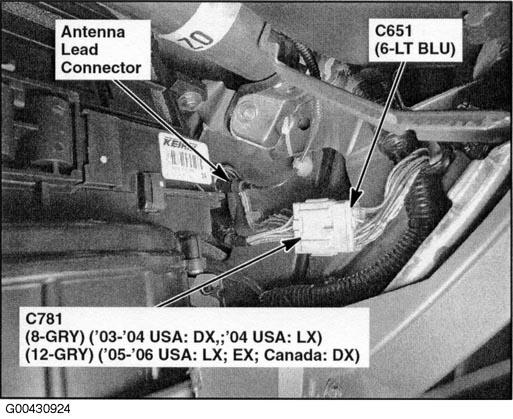

Fig 57: Under Right Side Of Dash

G00430924

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 58: Under Right Side Of Dash

G00268469

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 59: Behind Right Kick Panel (EX)

G00268470

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 60: Driver's Door

G00268471

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 61: Front Passenger's Door

G00268472

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 62: Left Rear Door

G00268473

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 63: Left Rear Door (Right Similar)

G00268474

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 64: Left Rear Door

G00268475

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 65: Right Rear Door

G00268476

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 66: Under Driver's Seat

G00268477

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 67: Under Front Passenger's Seat

G00268478

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 68: Under Front Passenger's Seat

G00268479

Courtesy of AMERICAN HONDA MOTOR CO., INC.

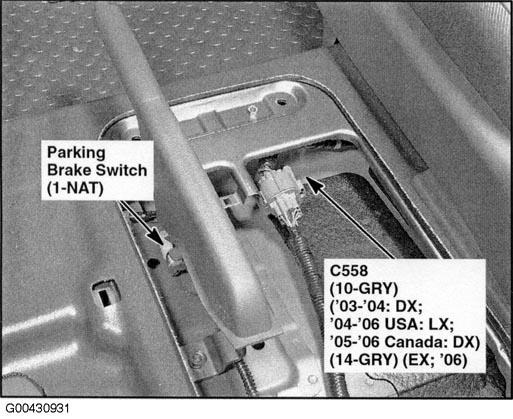

Fig 69: Under Center Console

G00430931

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 70: Middle Of Floor

G00268481

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 71: Left Quarter Panel

G00268482

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 72: Left Quarter Panel

G00268483

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 73: Right Quarter Panel

G00268484

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 74: Left "D" Pillar

G00268485

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 75: Right "D" Pillar

G00268486

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 76: Middle Of Hatch

G00268487

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 77: Left Side Of Tailgate

G00268488

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 78: Right Side Of Tailgate

G00263919

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 79: Behind Left Side Of Front Bumper

G00263920

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 80: Behind Right Side Of Front Bumper

G00263921

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 81: Behind Right Side Of Front Bumper

G00263922

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 82: Behind Right Side Of Front Bumper

G00263923

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 83: Right Side Of Engine Compartment

G00263924

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 84: Right Side Of Engine

G00263925

Courtesy of AMERICAN HONDA MOTOR CO., INC.

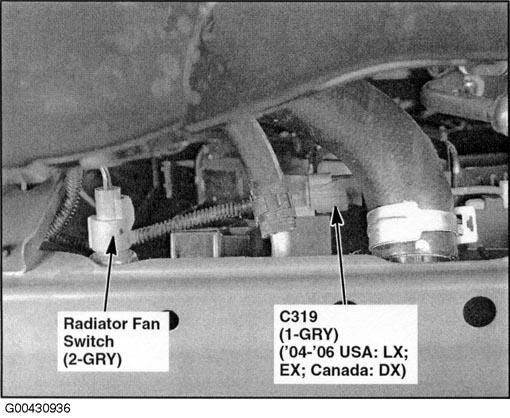

Fig 85: Front Of Engine Compartment

G00430936

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 86: Left Side Of Engine Compartment

G00263927

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 87: Transmission Housing (A/T)

G00263928

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 88: Transmission Housing (A/T)

G00263929

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 89: Under Middle Of Vehicle

G00263930

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 90: Under Left Rear Of Vehicle (EX)

G00263931

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 91: Under Left Rear Of Vehicle

G00263932

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 92: Under Left Rear Of Vehicle

G00263933

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 93: Under Right Rear Of Vehicle (EX)

G00430937

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 94: Transmission Housing (M/T)

G00263935

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 95: Transmission Housing (M/T)

G00263936

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 96: Under Left Side Of Dash (M/T)

G00263937

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 97: Under Left Side Of Dash (Honda Accessory)

G00263938

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 98: Under Left Side Of Dash (Honda Accessory)

G00263939

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 99: Under Front Passenger's Seat

G00263941

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 100: Right Quarter Panel (Honda Accessory)

G00263942

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 101: Front Of Engine Compartment

G00263943

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 102: Underdash Fuse/Relay Box

G00292073

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 103: Underhood Fuse/Relay Box

G00292074

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 104: Right Rear Door

G00291682

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 105: Under Middle Of Dash

G00360299

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 106: Front Passenger Seat

G00360300

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 107: Right & Left Side Of Floor

G00360301

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 108: Left Side Of Engine Compartment

G00430913

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 109: In Steering Column Cover

G00430918

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 110: In Steering Column Cover

G00430919

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 111: Middle Of Dash

G00430920

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 112: Driver's Door (Front Passenger's Similar)

G00430925

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 113: Driver's Door

G00430926

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 114: Front Passenger's Door

G00430927

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 115: Left Rear Door (Right Similar)

G00430928

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 116: Left Rear Door

G00430929

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 117: Right Rear Door

G00430930

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 118: Left Side Of Hatch

G00430933

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 119: Right Side Of Hatch

G00430934

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 120: Middle Of Hatch

G00430935

Courtesy of AMERICAN HONDA MOTOR CO., INC.

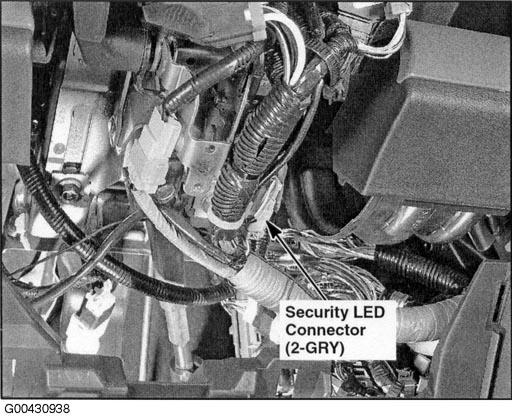

Fig 121: In Steering Column Cover (Honda Accessory)

G00430938

Courtesy of AMERICAN HONDA MOTOR CO., INC.

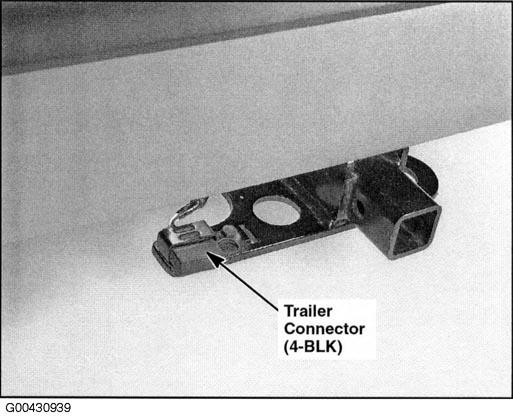

Fig 122: Trailer Hitch (Honda Accessory)

G00430939

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 123: Under Left Side Of Dash (Honda Accessory)

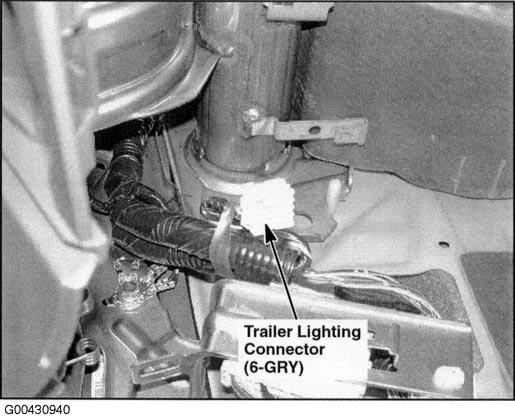

G00430940

Courtesy of AMERICAN HONDA MOTOR CO., INC.

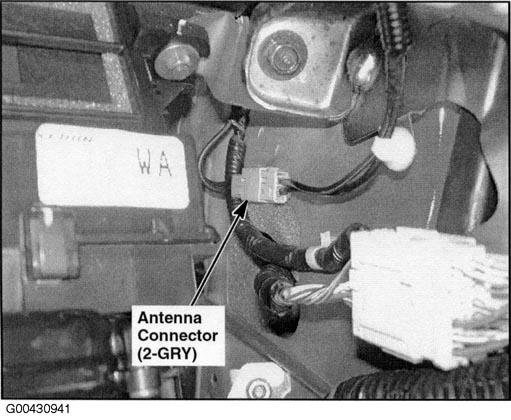

Fig 124: Under Right Side Of Dash (USA: DX)

G00430941

Courtesy of AMERICAN HONDA MOTOR CO., INC.

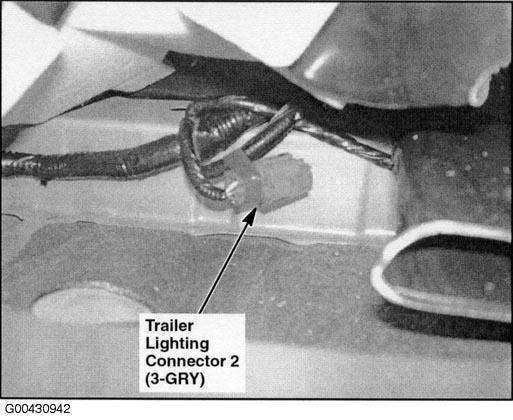

Fig 125: Under Driver's Seat (Honda Accessory)

G00430942

Courtesy of AMERICAN HONDA MOTOR CO., INC.

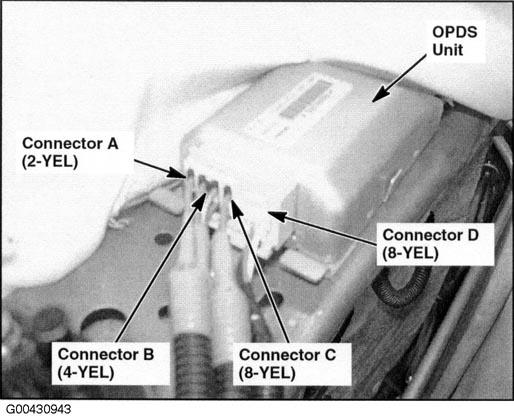

Fig 126: Side Of Front Passenger's Seat (EX)

G00430943

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 127: Right Quarterpanel (USA: EX)

G00430944

Courtesy of AMERICAN HONDA MOTOR CO., INC.

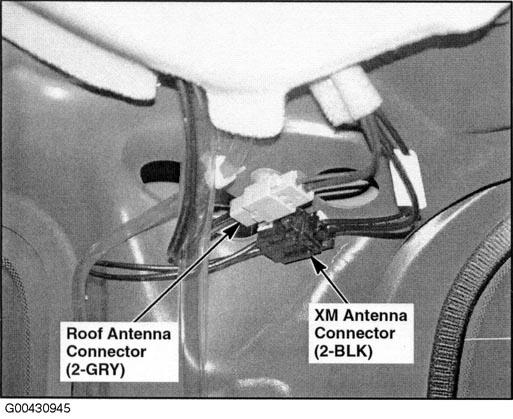

Fig 128: Right Rear Of Roof (USA: EX)

G00430945

Courtesy of AMERICAN HONDA MOTOR CO., INC.

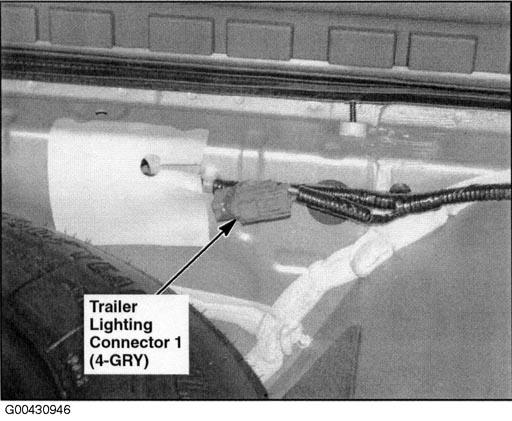

Fig 129: Rear Of Cargo Area (Honda Accessory)

G00430946

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 130: Right Side Of Engine

G00430947

Courtesy of AMERICAN HONDA MOTOR CO., INC.
