EVAP Canister Replacement

  1. Raise the vehicle on a lift.
  2. Remove the cover (A).
    Fig 1: Removing Cover
    G04666211Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the EVAP canister guard pipe (A).
    Fig 2: Removing EVAP Canister Guard Pipe (With Specifications)
    G04666212Courtesy of AMERICAN HONDA MOTOR CO., INC.

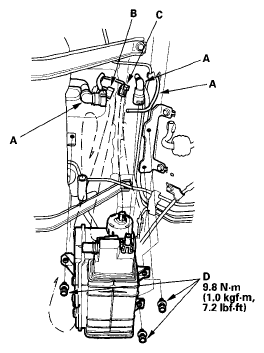

  4. Remove the hoses (A), the FTP sensor connector (B), the EVAP canister vent shut valve connector (C) and the bolts (D).
    Fig 3: Removing Hoses, FTP Sensor Connector, EVAP Canister Vent Shut Valve Connector And Bolts
    G04666213Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the EVAP canister.
  6. Remove the cap (A).
    Fig 4: Removing Cap
    G04666214Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Remove the EVAP canister vent shut valve (B).
  8. Install the EVAP canister vent shut valve on the new EVAP canister with new O-rings (C).
    NOTE: Do not coat the O-rings with oil.
  9. Install the parts in the reverse order of removal.
