Home >> Honda >> 2006 >> Civic Hybrid, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Electronic Throttle Control System (Hybrid) >> Component Location Index

Component Location Index

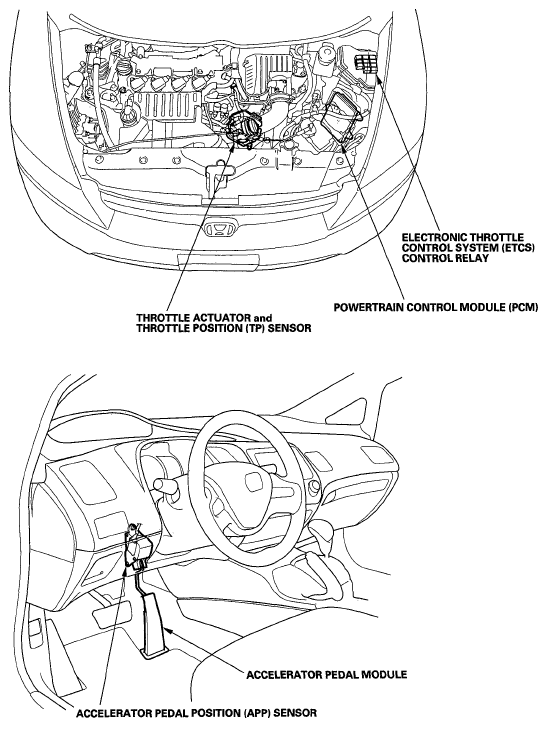

Fig 1: Identifying Electronic Throttle Control System Replacement Components

G05532023

Courtesy of AMERICAN HONDA MOTOR CO., INC.
