'09-11 Models

Disconnect the APP sensor 6P connector (A).
Remove the clip (B)
NOTE: Do not reuse the clip once it is removed.

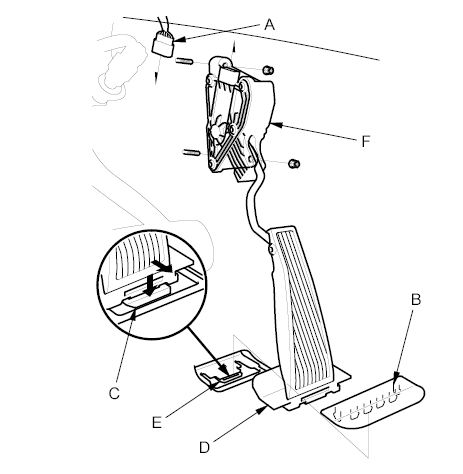

Fig 1: Identifying APP Sensor 6P Connector, Tab, Pedal Stop, Pedal Module & Clip
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Push the tab (C), and remove the accelerator pedal pad (D) from the pedal stop (E).
Remove the accelerator pedal module (F).
NOTE: The APP sensor is not available separately. Do not disassemble the accelerator pedal module.
Set the accelerator pedal pad (A) to the pedal stop (B).

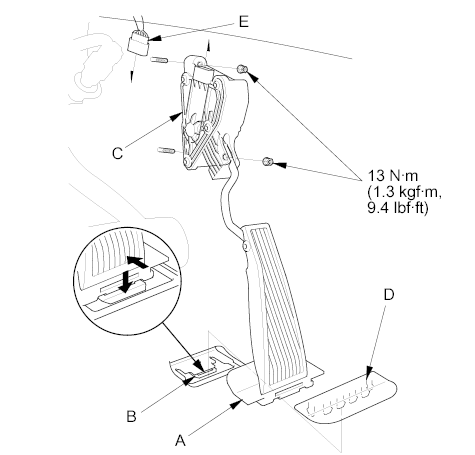

Fig 2: Identifying Accelerator Pedal Pad, Pedal Module, Pedal Stop, New Clip & APP Sensor 6P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the accelerator pedal module (C) with a new clip (D).
Reconnect the APP sensor 6P connector (E).
