Transfer Holder Disassembly

Cut the lock tab on the locknut of the transfer shaft using a chisel.

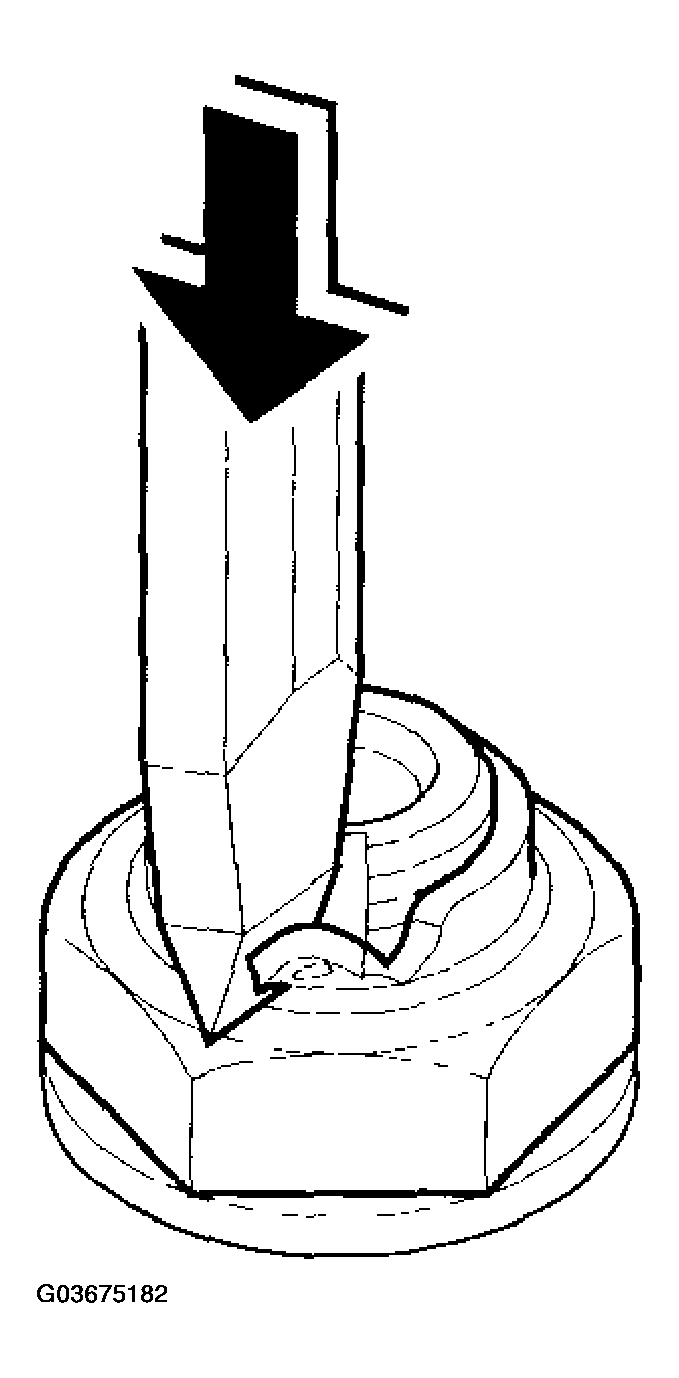

Fig 1: Cutting Lock Tab On Transfer Locknut
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Put a 14 mm hex wrench (A) in the transfer shaft (B), then secure the hex wrench in a bench vise.

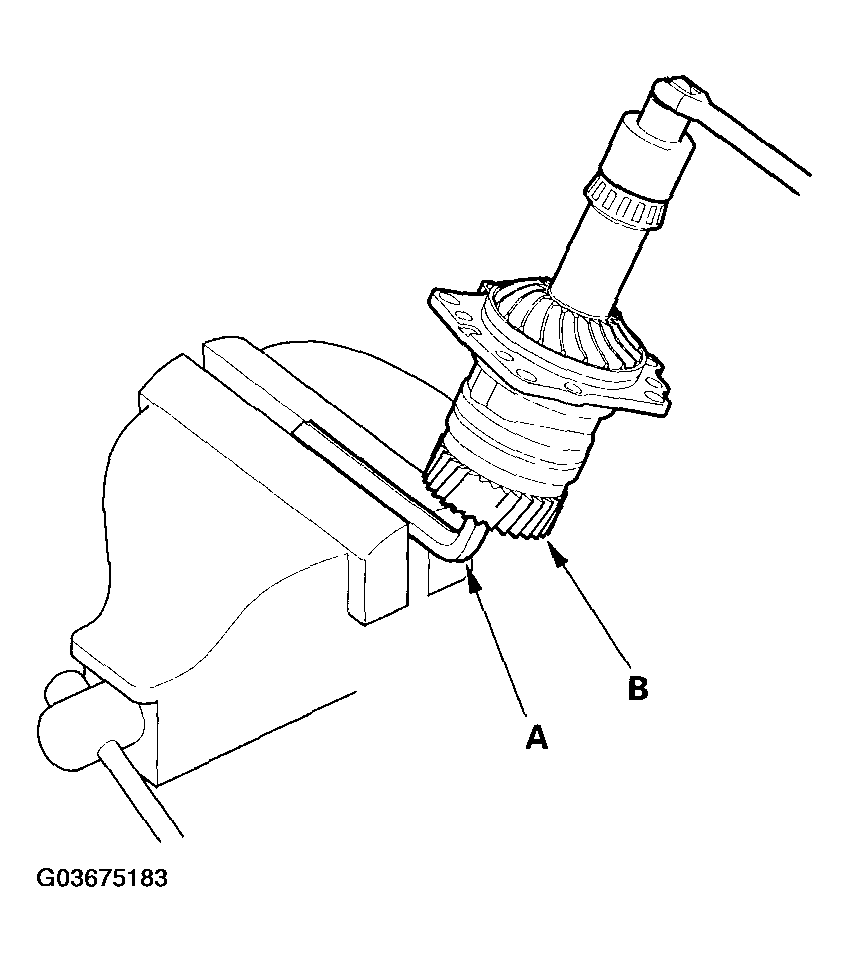

Fig 2: Placing Hex Wrench In Transfer Shaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the locknut (A) and conical spring washer (B).

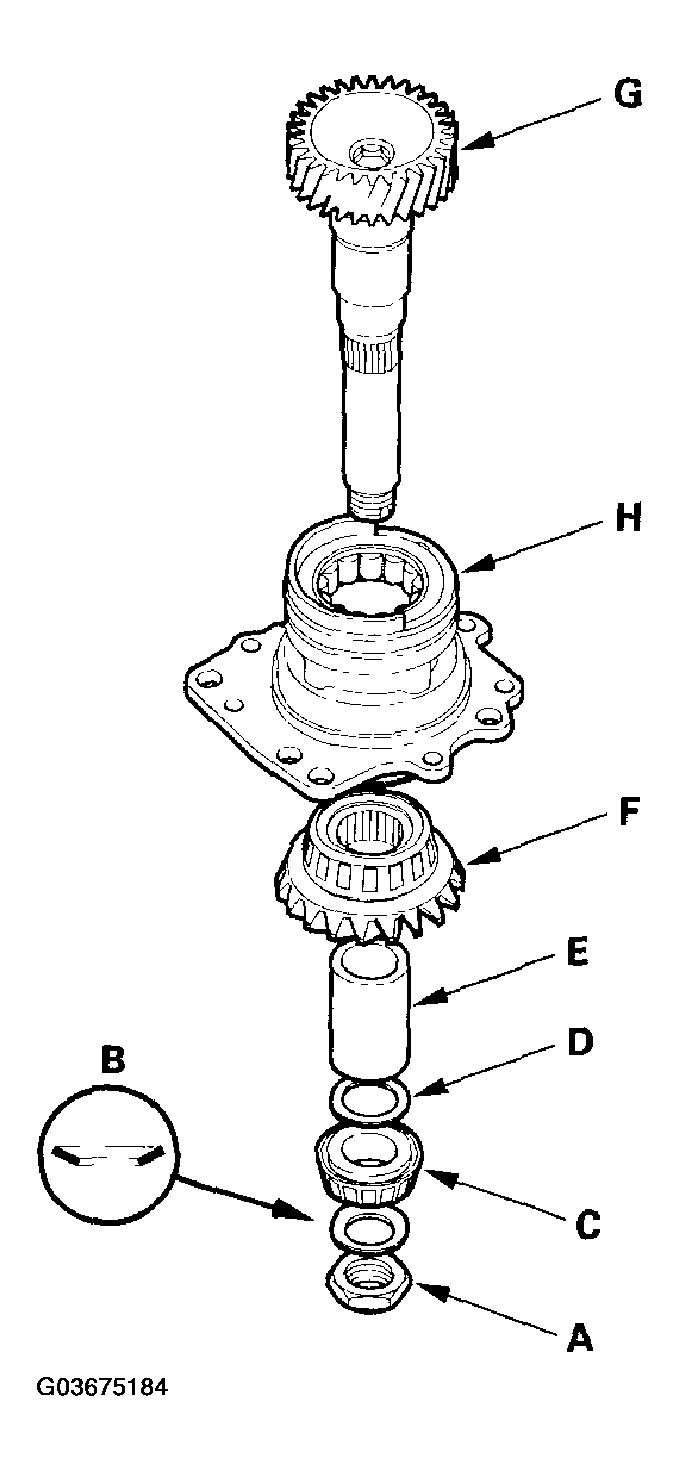

Fig 3: Removing Locknut And Conical Spring Washer
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the tapered roller bearing (C), 25 mm thrust shim (D), transfer collar (E), transfer drive gear (F), and transfer shaft (G) from the transfer holder (H).
