PCM Electrical Connections

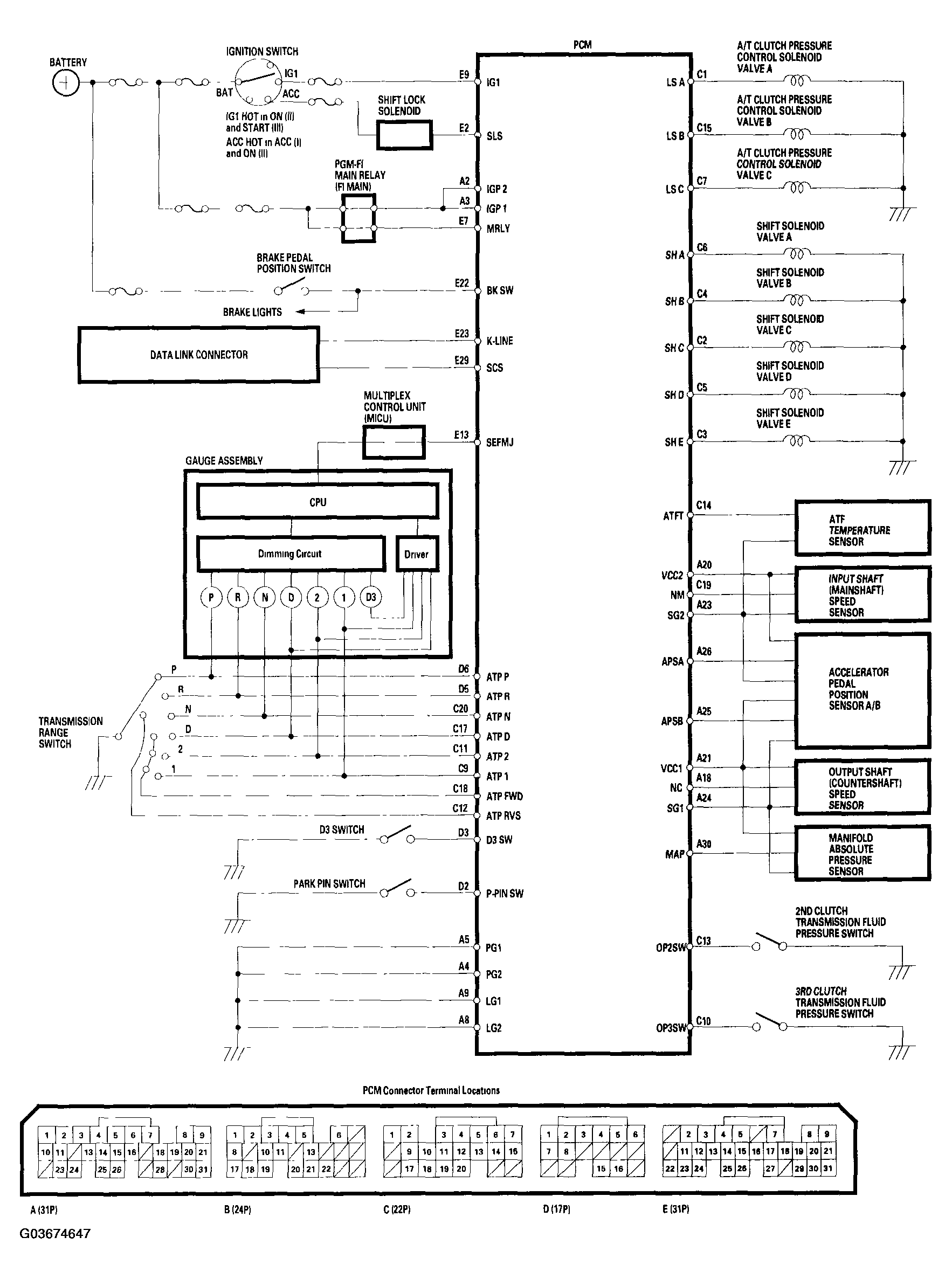

Fig 1: Automatic Transmission PCM Electrical Connections Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
