DTC P0717: Problem in Mainshaft Speed Sensor Circuit (No Signal Input): Notes

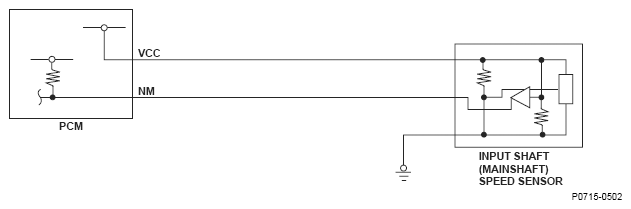

Fig 1: Mainshaft Speed Sensor Circuit - Wiring Diagram

G04823659

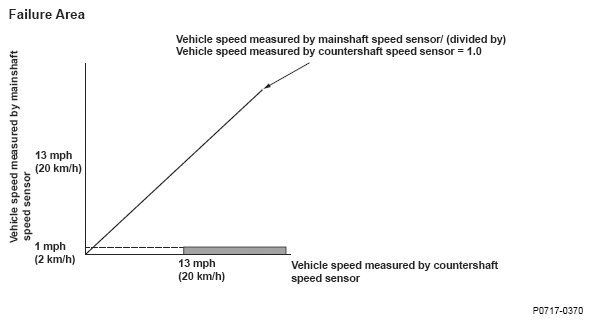

Fig 2: Mainshaft Speed Sensor Failure Area - Graph

G04823662
