Vacuum Hose Routing

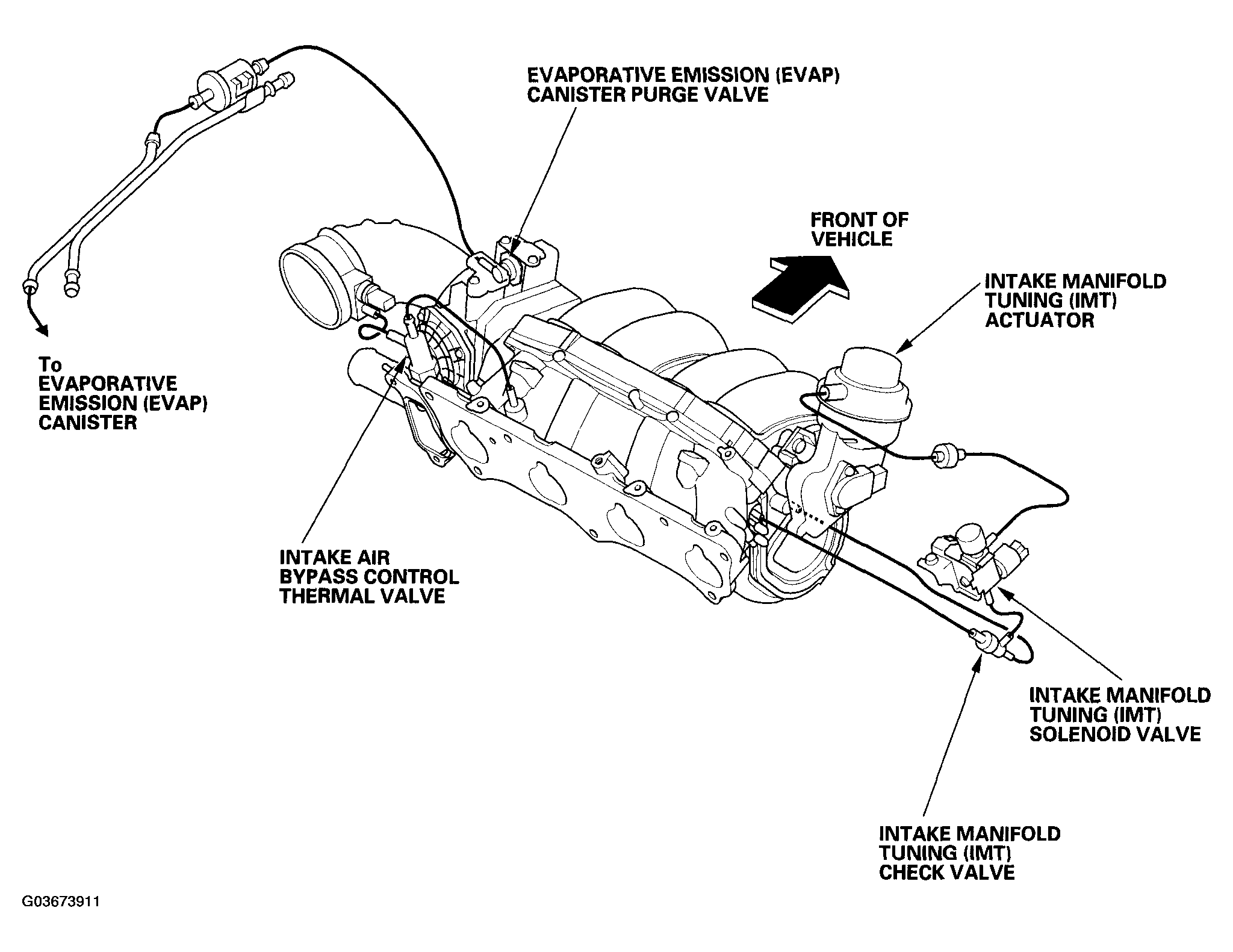

Fig 1: Identifying Fuel And Emission System (Vacuum Hose Routing)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
