Engine Mount Replacement

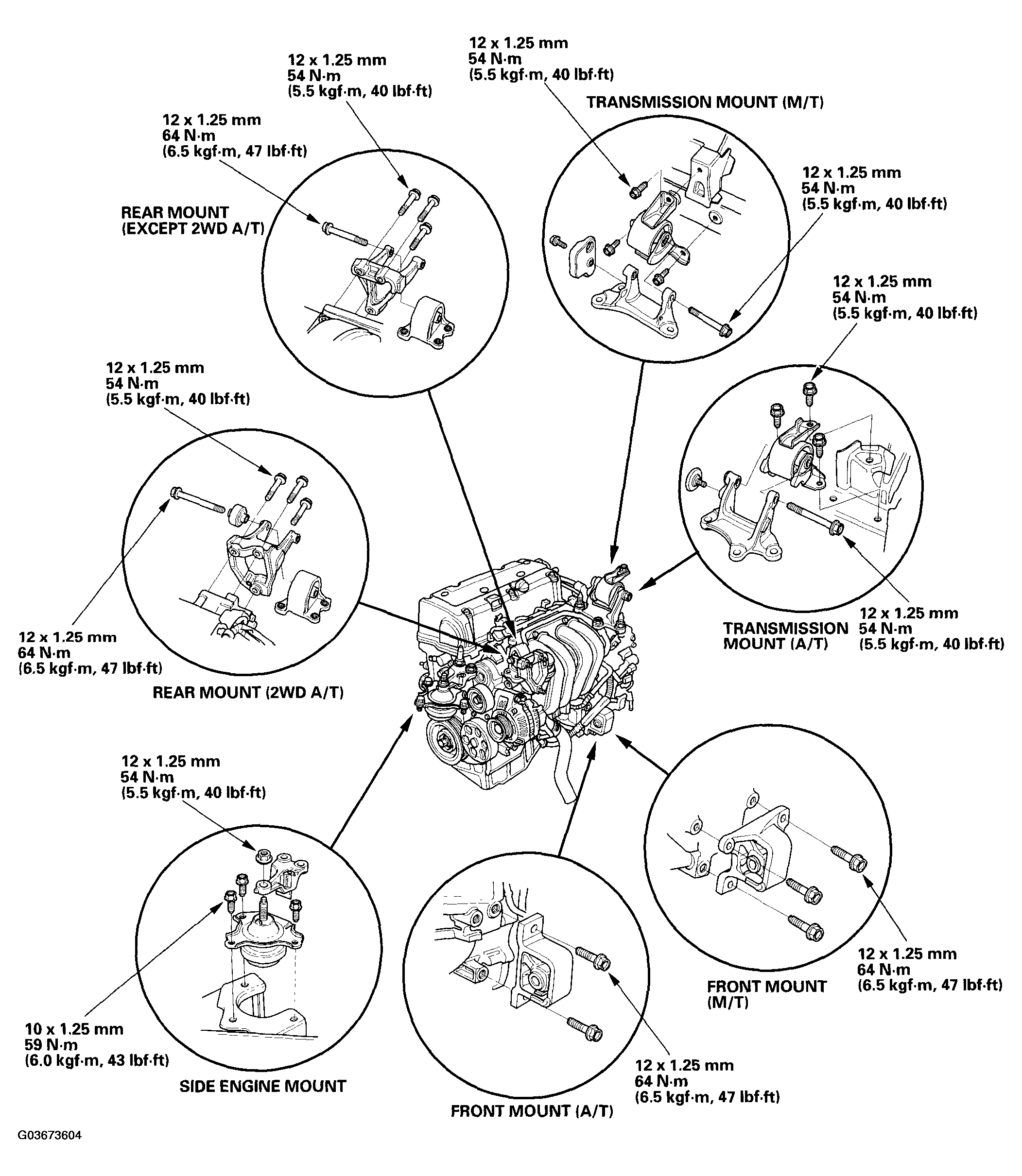

Fig 1: Replacing Engine Mount & Torque Specifications

G03673604

Courtesy of AMERICAN HONDA MOTOR CO., INC.
