Horn Test/Replacement

  1. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
  2. Disconnect the 1P connector (A), and remove the horn (B).

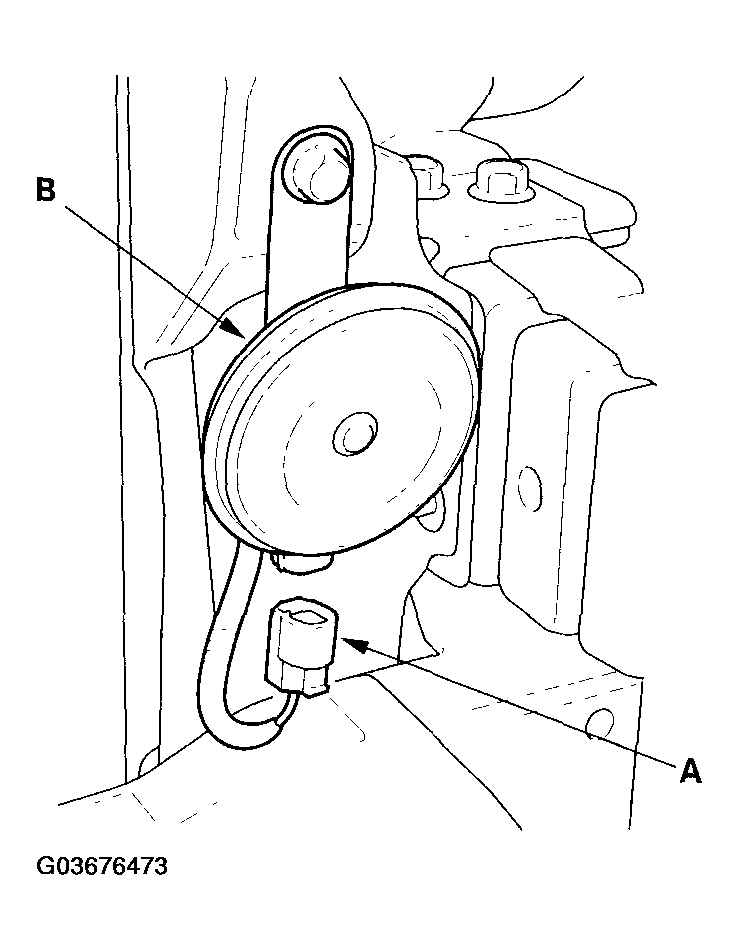

    Fig 1: Disconnecting the 1P Connector And Removing Horn
    G03676473Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Test the horn by connecting battery power to the terminal (A) and ground to the bracket (B). The horn should sound.
    Fig 2: Identifying Horn Terminal And Bracket
    G03676474Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the horn fails to sound, replace it.
