Hatch Glass Disassembly/Reassembly

NOTE:

Put on gloves to protect your hands.
Place the hatch glass on a padded surface to prevent damage.
Do not damage the rear window defogger grid lines and terminals.
To remove the bolts, use a T30 Torx bit.
To remove the rear window molding, refer to Rear Window Molding Replacement (see REAR WINDOW MOLDING REPLACEMENT ).
To remove the high mount brake light bracket and wire harness trim, refer to High Mount Brake Light Bracket/Wire Harness Trim Replacement (see HIGH MOUNT BRAKE LIGHT BRACKET/WIRE HARNESS TRIM REPLACEMENT ).
To install the rear "H" emblem, refer to Emblem Replacement (see EMBLEM REPLACEMENT ).

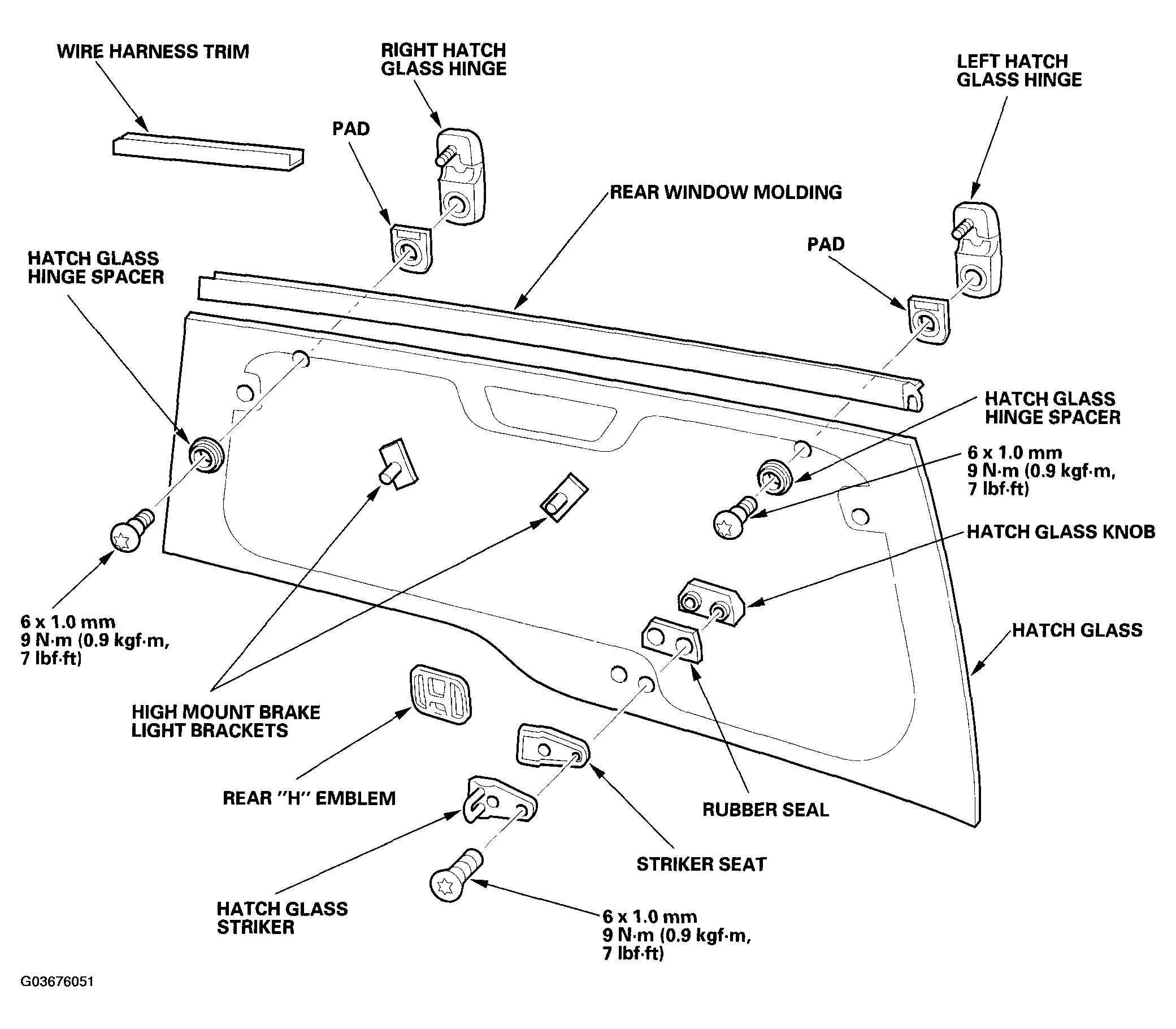

Fig 1: Removing /Installing Hatch Glass With Torque Settings
Courtesy of AMERICAN HONDA MOTOR CO., INC.
