"Connected" ECUs
WARNING: This page is about a different variant/trim than selected.

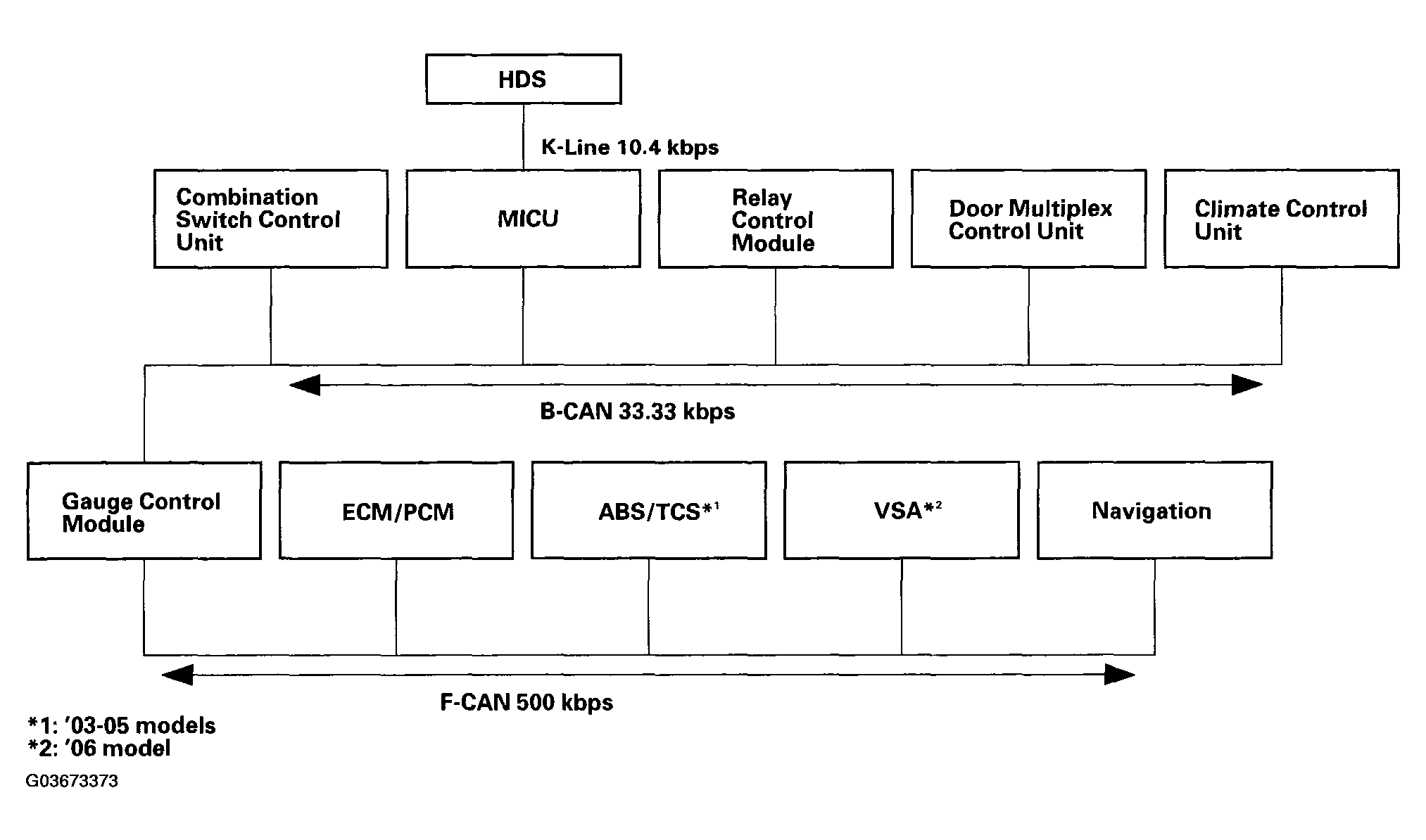

Several ECUs are connected to each of the two networks. The Gauge Control Module is part of both networks since it is the "Gateway" between them. Below is a list of ECUs and the network they are connected to.
B-CAN ECUs
- Gauge Control Module
- Relay Control Module
- Multiplex Integrated Control Unit (MICU)
- Door Multiplex Control Unit
- Combination Switch Control Unit
- Climate Control Unit
- Optional Security (LX model, SE model (Canada) option)
- Optional Unit (B-CAN option)
F-CAN ECUs
- Gauge Control Module
- ECM/PCM
- Navigation Control Unit
- ABS/TCS (Traction Control System) ('03-05 models)
- VSA (Vehicle Stability Assist) ('06-07 models)
