Component Location Index

WARNING: This page is about a different variant/trim than selected.

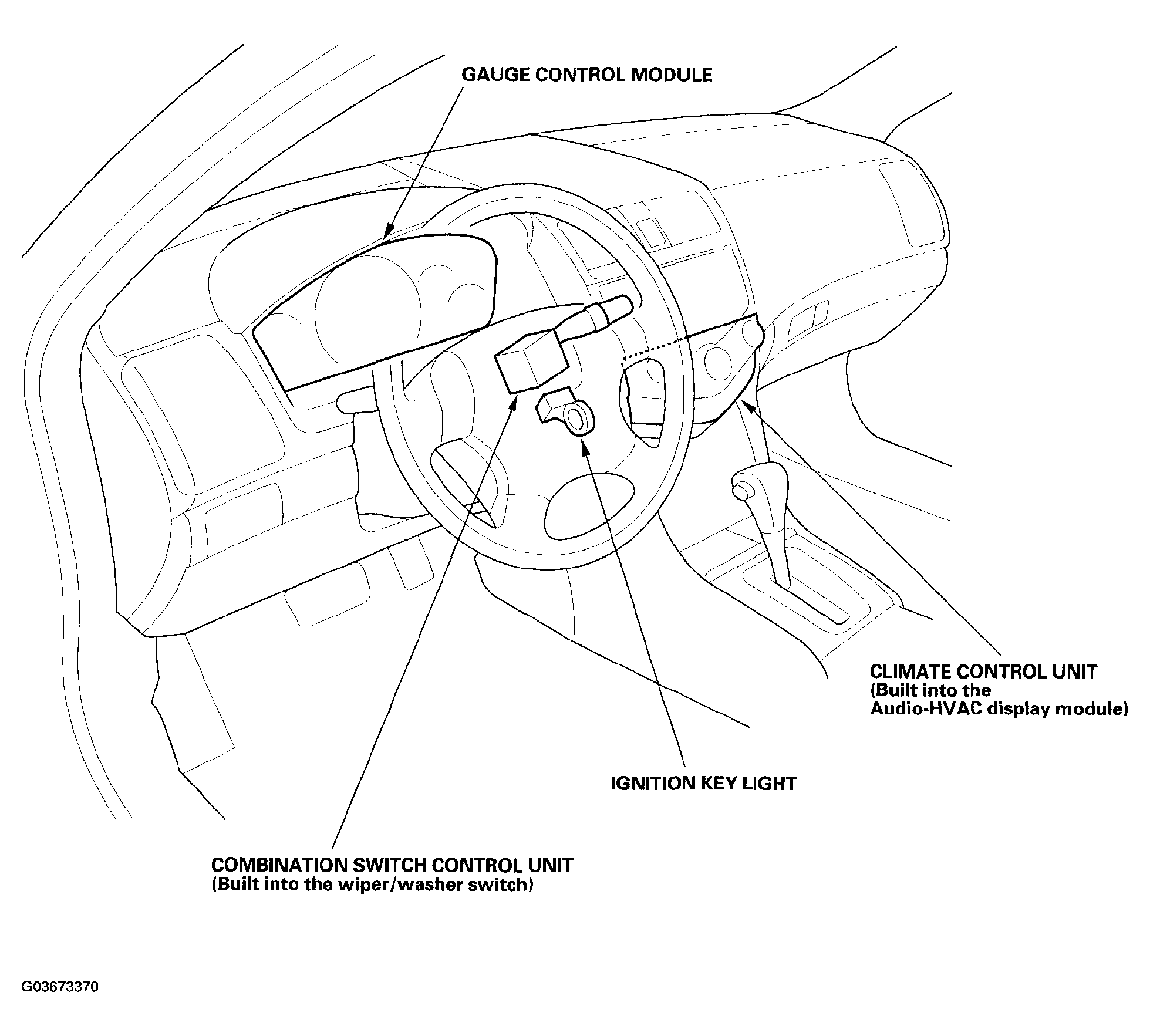

Fig 1: Locating Multiplex Integrated Control System Components (1 Of 2)
G03673370Courtesy of AMERICAN HONDA MOTOR CO., INC.

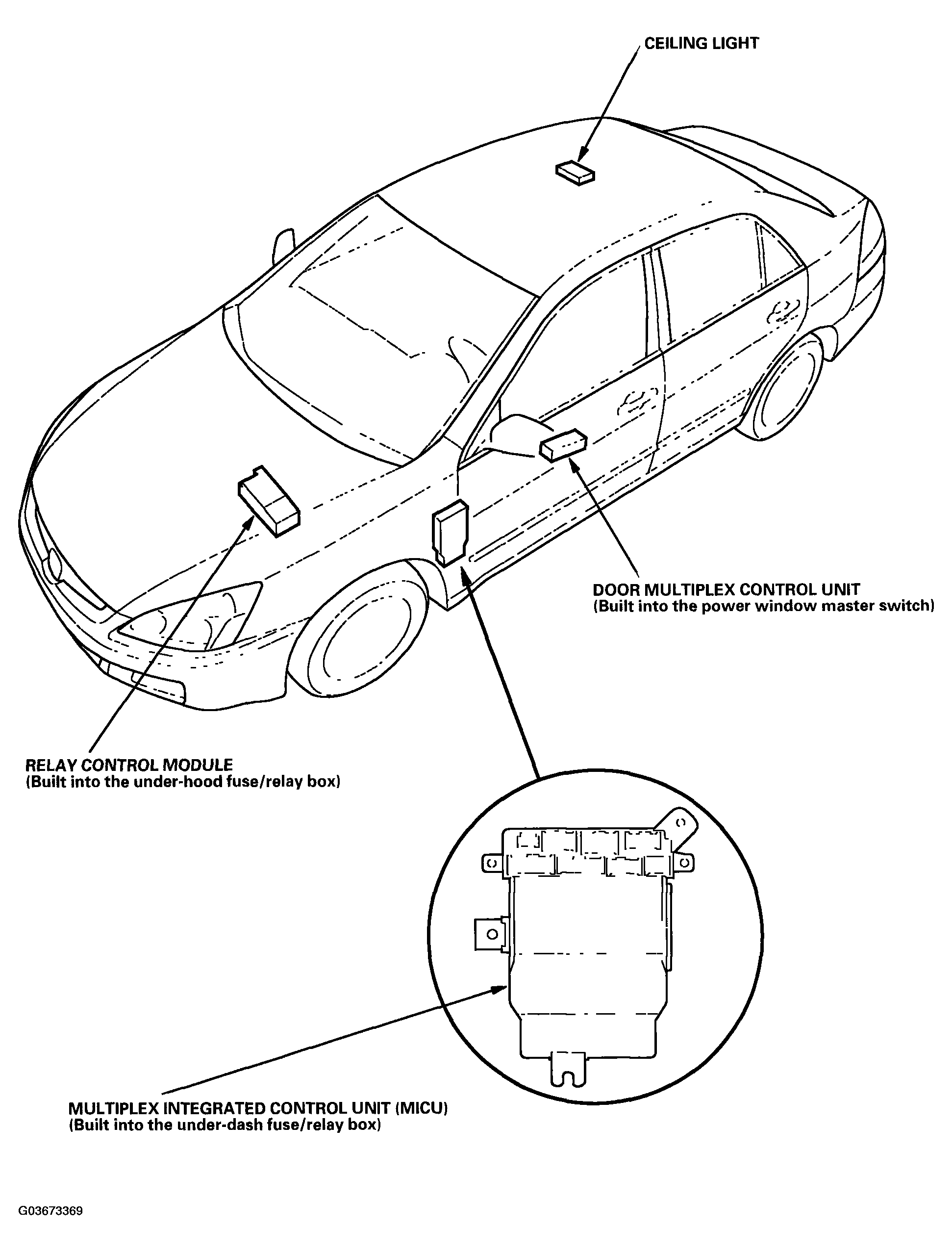

Fig 2: Locating Multiplex Integrated Control System Components (2 Of 2)
G03673369Courtesy of AMERICAN HONDA MOTOR CO., INC.
