Automatic Transmission
>>
Automatic Transmission
>>
Special Tools
Special Tools

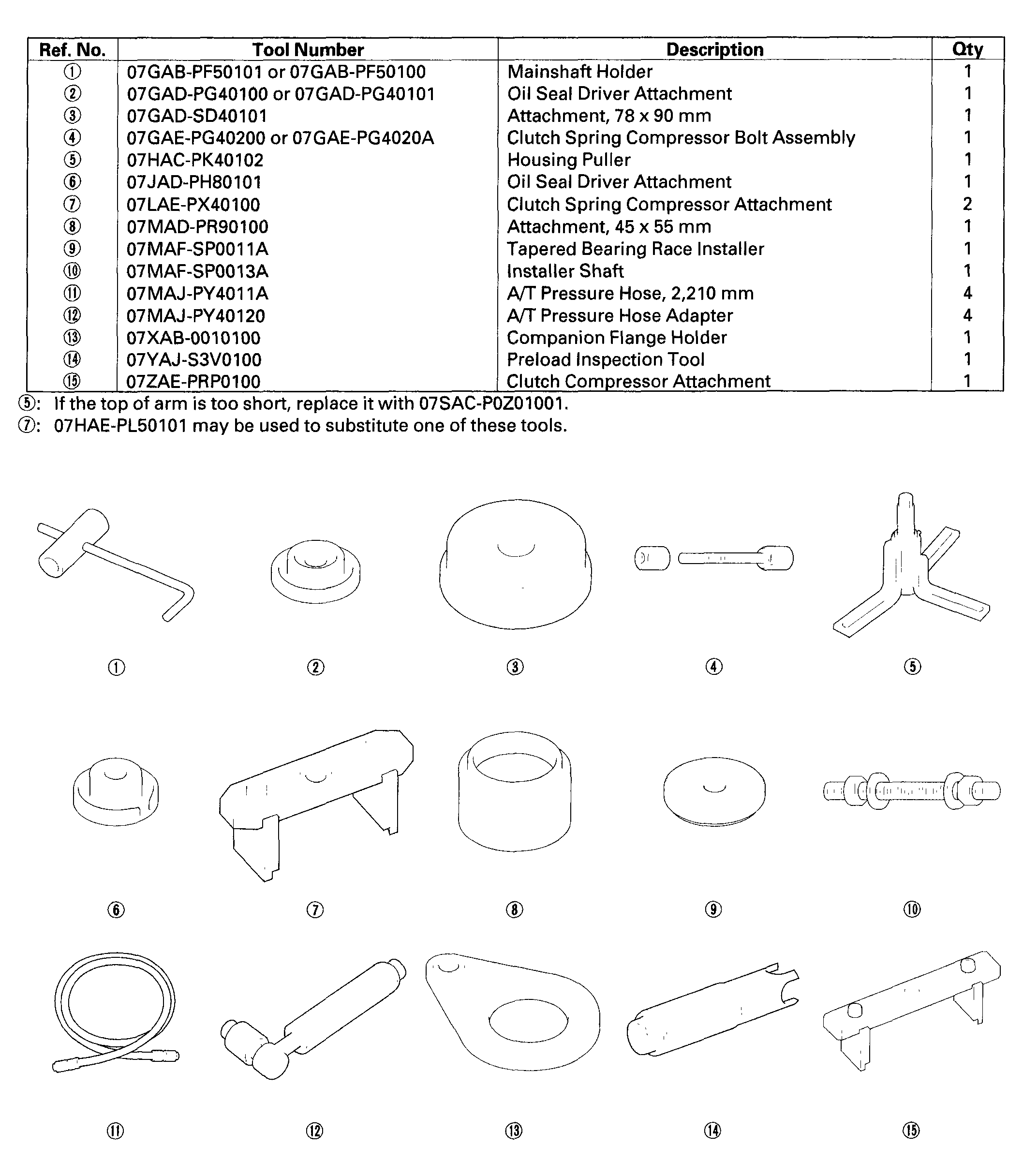

Fig 1: Identifying Special Tools
Courtesy of AMERICAN HONDA MOTOR CO., INC.

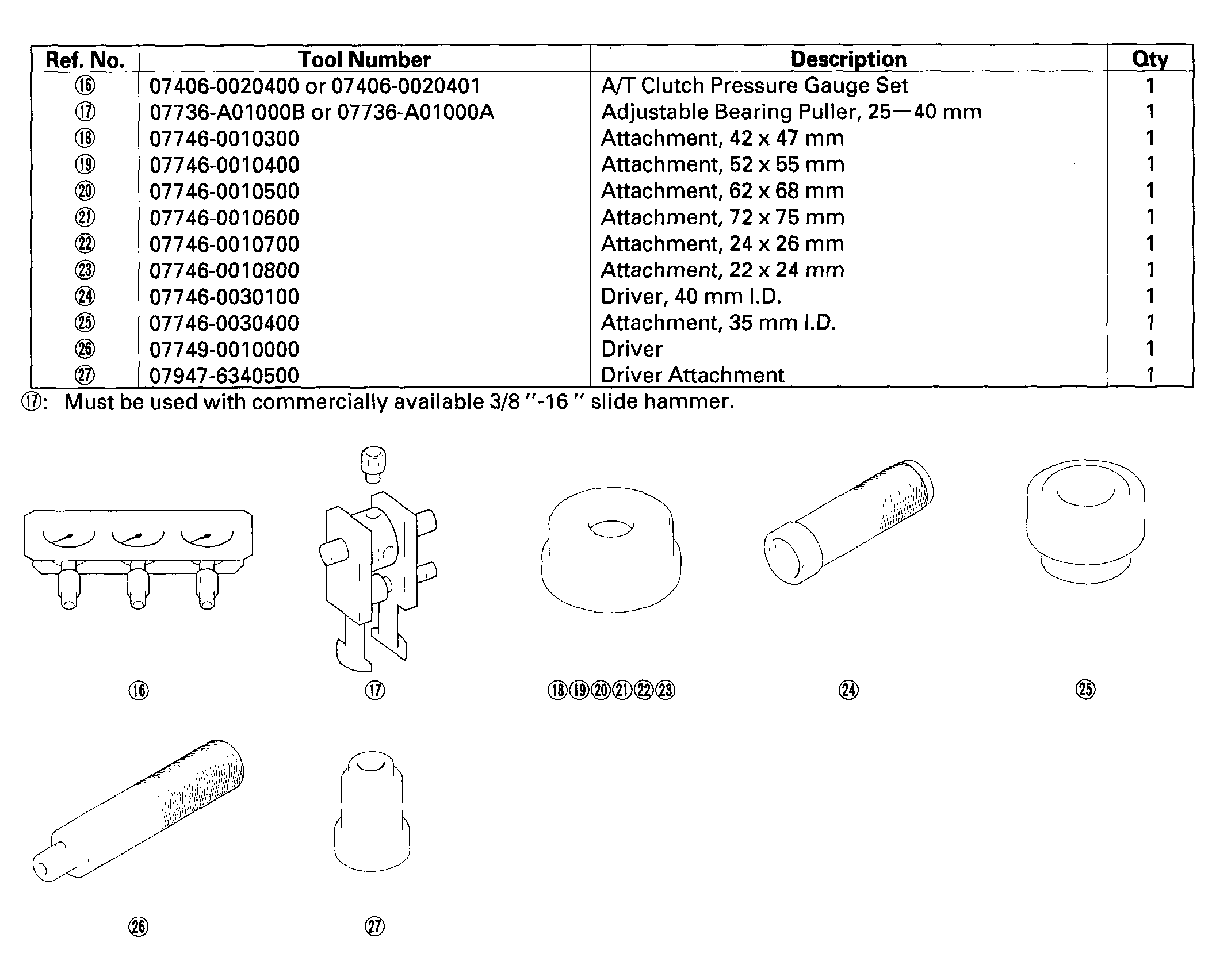

Fig 2: Identifying Special Tools
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
